Detail
Deskripsi
Handy Digital Gloss Checkers Allow Objective, Quantified Gloss Measurements Designed for greater ease of operation, maintain clean surfaces and improve quality control inspection in various industrial applications. High efficiency and flexibility utilizing a separate detector and light source, offers the ability to switch between 60 degree measuring angle for standard gloss measurement, and 20 degree measuring angle for high-gloss surfaces with gloss values over 70. The flexible connection between the probe and display unit ensures greater work efficiency. Just one touch of the calibration key starts the automatic sequential zero-span calibration. Specification: Optical system :60' measurement: Incident angle 60', Reception angle 60', 20 measurement: Incident angle 20, Reception angle 20'. Measuring area : 60 'measurement 3*6mm oval 20'measurement 3*4mm oval Light source :LED (wavelength: 890 nm) Detector:SPD (silicone photodiode) Measuring range:0-100 Display range:0-199 (resolution: 1) Repeatability:+-5% F.S. +-1 digit Power Source :A3 dry cell battery *4 (Not rechargeable) Battery life :50 hours or more Operating temperature :10 - 40'C Dimensions:Main body: 140 (W) * 75 (H) * 34 (D) mm 5.5 (W) * 3.0 (H) * 1.3 (D) in Optical sensor: 88 (W) * 30 (H) * 45 (D) mm 3.5 (W) * 1.2 (H) * 1.8 (D) in Weight :Approx. 350g (with batteries) Additional functionsAutomatic calibration,Automatic power cut-off,Display hold,Overrange display, Battery life display.
#Kondisi masih bagus dan terawat, minus penggunaan dan tidak ada baterai.
Alasan penjualan karena butuh uang.

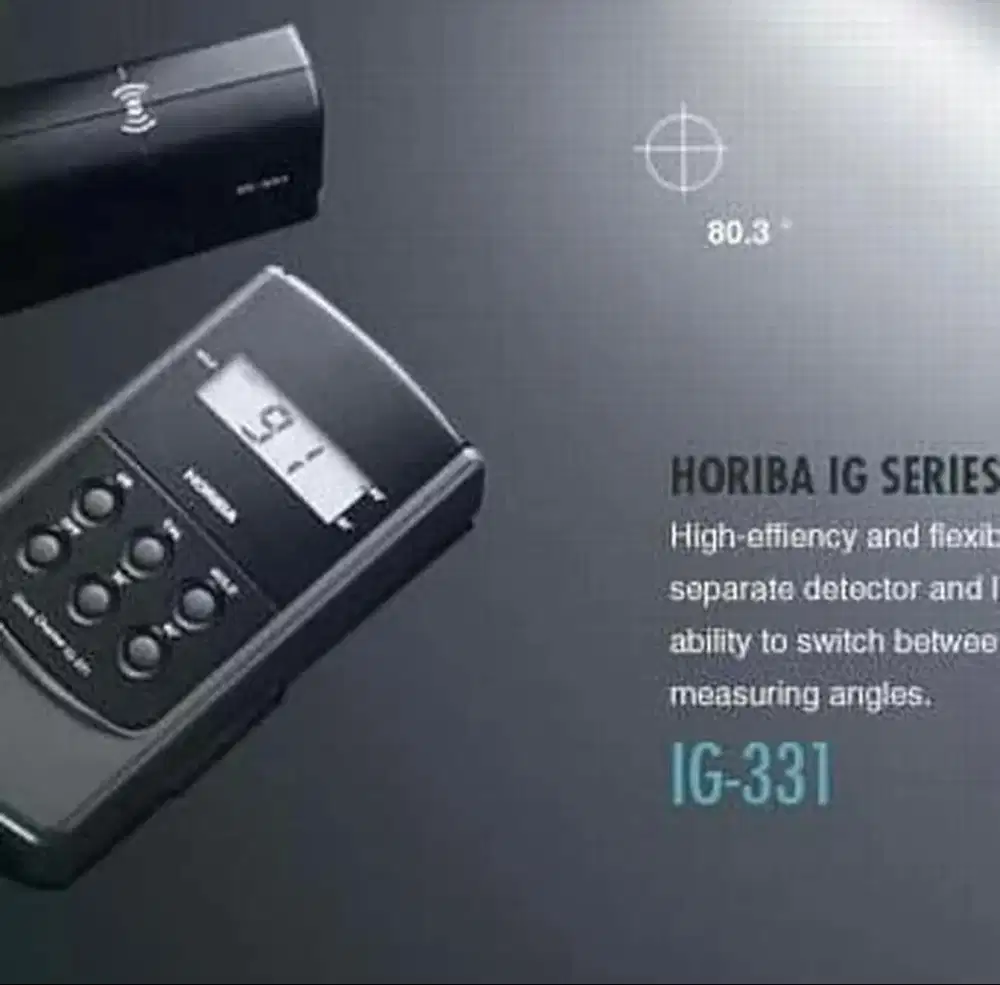

Horiba IG-331 Gloss Checker Digital
