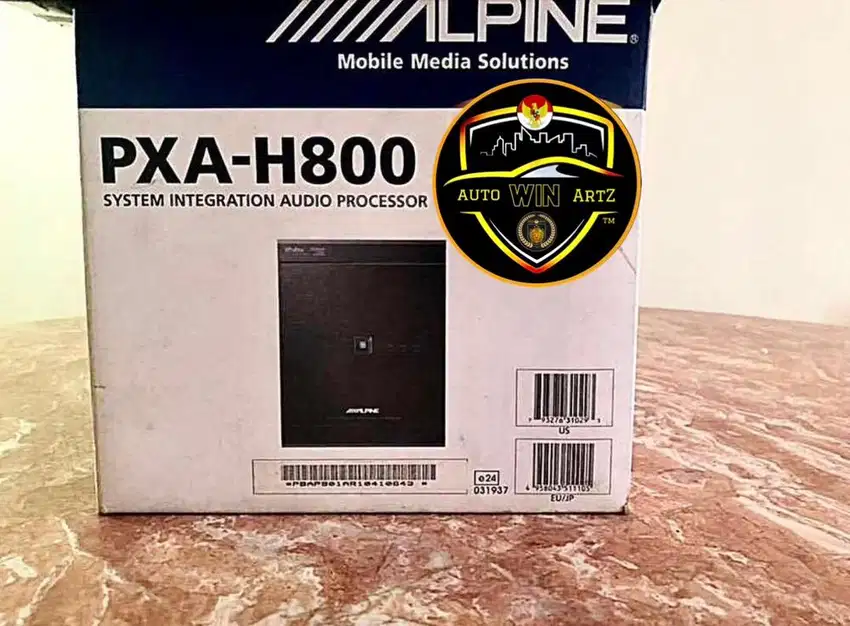

* Dijual Alpine Processor system integration PXA-H800 (+) Alpine RUX C800

- Koleksi & Pemakaian pribadi

- very rare items, very good conditions, very well maintained

- fullset (box/dus, kartu garansi/jaminan, kabel”, buku instruksi, cd driver + cd setting tuning)

- Beli dari baru, belum pernah service

- Harga : Rp 10.500.000

* Product information :

The PXA-H800 provides all the audio processing functions necessary to enable the system to reach the highest levels of sound quality.

Audiophile-grade Components

A few years ago, Alpine released the AlpineF#1Status series of ultra-high performance audio components.

Many of the lessons learned from developing those models, about high-grade parts and how to apply them, are now being put to good use in products like the PXA-H800. One example is the use of four Wolfson 24-Bit D/A converters, which are generally found only in professional recording systems and help to ensure superb detail and soundscape. Another is the use of two 32-Bit floating-point SHARC DSPs, which precisely reproduce the sound source with no degradation.

Other top quality parts are a 6-layer PCB and a 24-Bit A/D converter for high quality RCA input and 114dB dynamic range at the device level.

* spesifikasi :

1. Sound Tuning :

- Graphic Equalizer: 31 Bands (Front, Rear, Center), 10 Bands (Subwoofer)

Parametric Equalizer: 10 Bands (Front, Rear, Center), 5 Bands (Subwoofer)

- Crossover Adjustment : Highpass, Lowpass, Bandpass

- 8-channel Time Correction

- ImprintEQ with 3 preset and fully -customizable target curves

RoadEQ

- Auto Time Correction (Auto TCR)

- Dolby Digital

- Dolby Pro Logic II

- dts Digital Surround

- Bi-Phantom Function

- MediaXpander Plus

- Euphony

- AUX IN Gain Adjustment

- AUX Output Level Adjustment

- Navigation Voice Mix Level Adjustment

2. General :

- Ai-NET Connection

- Number of Input Channel: 6 (Analog - RCA or Speaker Level), 2 (Optical Digital), 2 (Ai-NET)

- Type of Analog Input: RCA (Speaker Line Connection Adapter Bundled)

- Type of Digital Input: TOSLINK

- Navigation Voice Guidance Input: RCA Input on Power Supply Connector

- Number of Output Channel: 8 (RCA Output)

- 24-bit Ultra High Performance DAC

24-bit ADC

- Twin 32-bit Floating-point Processing DSP

- Extremely Low Jitter Management Circuit

- 4V Preout

- S.T.A.R. Circuit

- High Grade Audio Component Adopted

- Gold-plated Terminals

- PC Control Possibility for Sound Tuning Functions (Software Bundled)

- Microphone Bundled

- USB Cable Bundled

- Ai-NET Connection Cable Bundled (5.5m)

3. SPECIFICATIONS

Sound Tuning

- Graphic Equalizer Number of Bands: 31 Bands (Front, Rear, Center), 10 Bands (Subwoofer)

- Graphic Equalizer Level Adjustment: ±12 dB (0.5dB step)

- Parametric Equalizer Number of Band: 10 Bands (Front, Rear, Center), 5 Bands (Subwoofer)

- Parametric Equalizer Frequency: 20/22/25/28/31.5/36/40/45/50/56/63/71/80/90/100/110/125/140/160/180/200/220/250/280/315/360/400/450/500/560/630/710/800/900/1k/1.1k/1.2k/1.4k/1.6k/1.8k/2k/2.2k/2.5k/2.8k/3.2k/3.6k/4k/4.5k/5k/5.6k/6.3k/7.1k/8k/9k/10k/11k/12.5k/14k/16k/18k/20kHz (Front, Rear, Center)

Parametric Equalizer Frequency: 20/22/25/28/31.5/36/40/45/50/56/63/71/80/90/100/110/125/140/160/180/200Hz (Subwoofer)

Parametric Equalizer Level Adjustment: ±12 dB (0.5dB step)

- QFactor: 0.5; 1; 1.5; 2; 2.5; 3; 4; 5

- Time Correction: 0 to 20ms (0.05ms step)

- Crossover Frequency: 60 step (0 to -36 dB/oct.)

4. Dimensions :

- Chassis Size (W x H x D): 169 x 50.8 x 215 mm

5. General :

- Power Requirement: 14.4 (11-16) V.DC

- Frequency Response: 20Hz - 20kHz

- Signal to Noise Ratio (RCA Analog Input): >103dB (IHF-A)

- Signal to Noise Ratio (Digital Input): >110dB (IHF-A)

- Channel Separation: 90dB

- Input Sensitivity (RCA Input): 2V

- Input Sensitivity (Speaker Level Input): 7V

- Rated Output: 4V (with 10k ohms load)

- Distortion Factor: 0.01%

- Input Impedance: 10k ohms or higher

- Output Impedance: 1k ohms or less

- Operating Temperature: -20°C to +60°C

- Weight: 1.35kg
