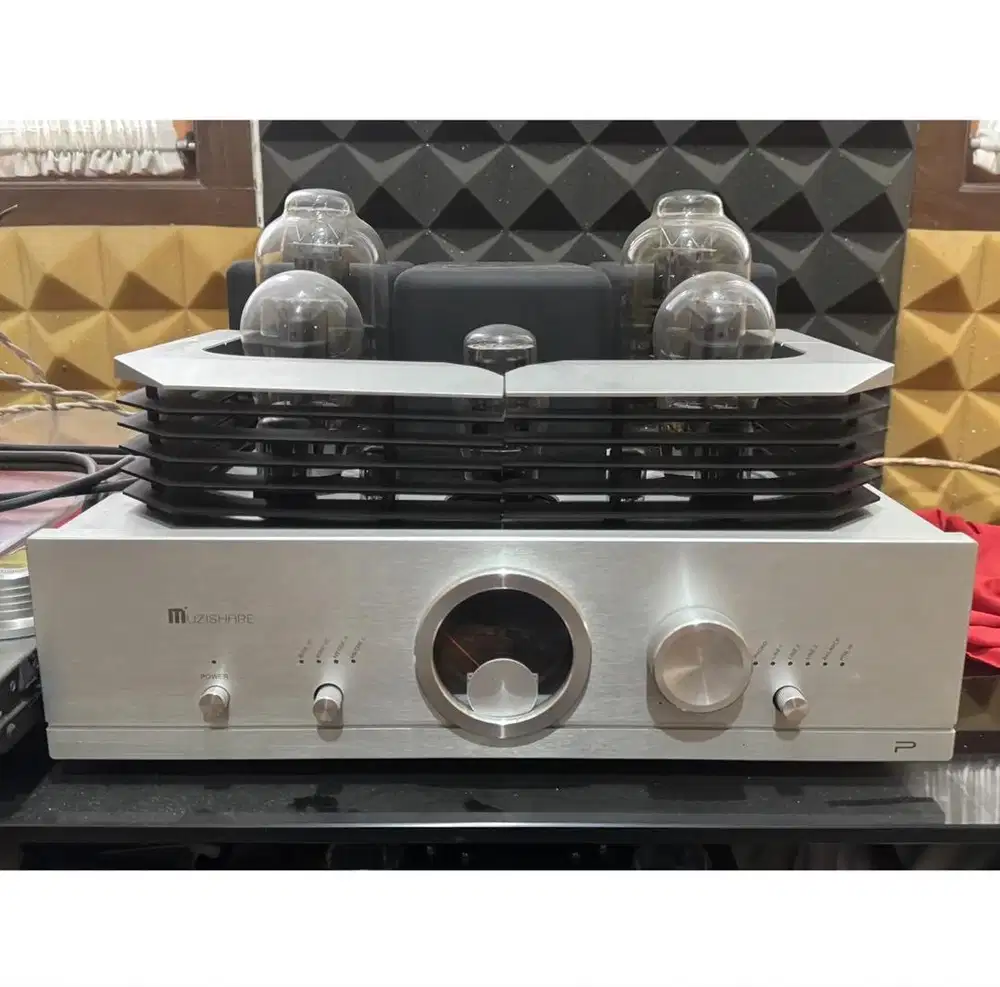

Single Ended 50Watt, Class A

Pre Amp 1 : Tabung 6SN7

Pre Amp 2 : Tabung 300B

Final : Tabung 805

Sudah Upgrade

Capasitor Coupling Duelund Moon Cake (Harga beli sepasang 25jt)

Cable Signal Internal ganti yang bagus

Solder ulang dengan Timah Mundorf Silver Gold untuk jalur signal Audio

805 Amplifier (50wx2):

Sound Characteristics: Clear, linear, with good audio resolution and dynamic range, described as bright, transparent, and precise.

Low-frequency Performance: 805 typically provides a flatter, more accurate low-frequency response, helping to produce clean, powerful low-frequency sound.

Distortion Characteristics: Distortion levels are relatively low, especially at high power outputs, with distortion being more linear and transparent.

Application Scenarios: Suitable for music performances requiring high fidelity and dynamic range, such as classical music, jazz, and rock music, with clear and transparent sound.

Suitable for all type of speakers less or more than 200w or 300w HIFI or HI-END system or AV system

MUZISHARE is one of best chinese hi-fi equiment production manufacturer, Their products have past Certificate of Conformity European(CE)

Characteristics:

. Line Input

. XLR Input

. Phono Input

. Direct Power Amp Mode

Specifications:

Output Power: 50W per channel

Inputs: PHONO, lin1,lin2,lin3,Balance ,Pre IN

THD: <1% (1kHz)

Frequency Response: 15Hz – 35kHz (-1.5dB)

SNR: 92dB

Input sensitivity: 200mV

Input Impedance: 100kΩ

Output Impedance: 4Ω-8Ω-16Ω

Tubes: 12AX7*2, 6SN7*2, 5U4G*2, 300B*2, 805*2

Voltage: 115V/220VAC 50Hz

Power consumption: 450W

Preamp tube: JJ ECC83(12AX7) × 2 , EH 6SN7 × 2

Driver tube: 300B × 2 (special customize black plate , same quality than replica WE300B)

Power tube : 805 x2 (special customized, same quality than replica WE805)

Rectifier: 5U4G × 1 (special customize black plate , same quality than replica WE274B)

Dimension:(W × D × H):430*435*265mm

Net Weight: 42KG

Gross Weight: 48KG
