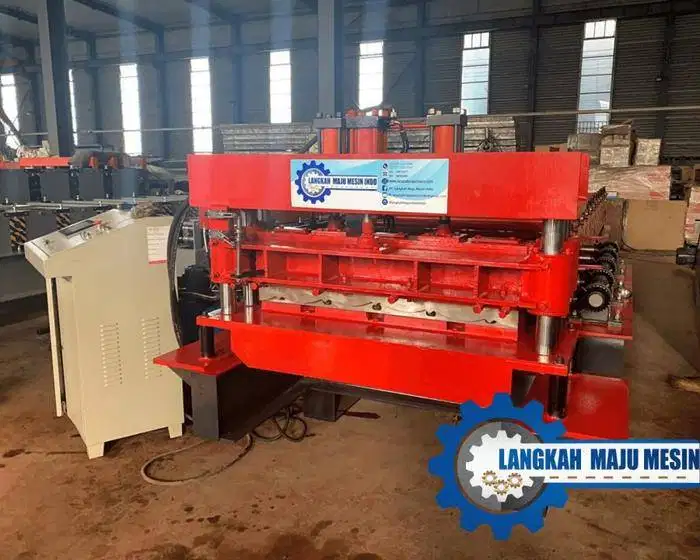

Mesin Genteng / Glazed Tile Panel Machine XN-800

* Harga Mesin Genteng XN-800 : Rp 460.000.000

* Diharapkan konfirmasi terlebih dahulu sebelum melakukan pemesanan / untuk bertanya lebih langsung tersedia berbagai tipe sesuai dengan kebutuhan seperti mesin spandek 750 / 1000 , mesin bondeck , mesin reng , mesin kanal c , mesin seng gelombang dapat dilengkapi dengan penambahan servo / high speed / penggunaan high material untuk mesin dan roll silahkan hubungi kami

.

Feeding material width : 914mm

Material Coil Thickness : 0,2-0,6mm

Material Coil : PPGI/GI

Under Frame : 300 II Beam

Inner Diameter : 508-610mm

Suitable Width : 1000mm

Main Frame : 350 mm-H Steel

Slidewall Thickness : 16mm

Forming Speed : 4-6m/min

Voltage : 380V/50Hz/3phase

Motor Power : 4KW Main Motor & 5.5KW Hydraulic Pump

Roller Station : 12

Roller Material : 45# Hard Steel (Heated and Quenched, CNC Lathe Finish Turning, Hard Chrome Coated 0,5mm)

Mainframe : 300H steel, 0,6 inch double chain inside

Shaft Diameter : 80mm Solid

Shaft Material : 45# Hard Steel (Heated and Quenched, Cylindrical Grind)

Transmition : 1*Chain

Servo Motor Driver

Pre Cutter Material : Cr12Mov with quenched treatment 60-62 degrees

Cutting Type : Hydrolic Stop to Post & Post to Cut , Two High Pressure Cylinder

Oil Type : Type 46

Extra Control Box

Touch Screen 7 inch TouchWin, Electric Inverter CHINT & Schneider , Encoder , Delta PLC Taiwan , 2 Language (Chinese & English)

Voltage : 380V , 50 Hz , 3 phase

Support Table Length : 3m

Dimensions :

Machine Size : 6500*1700*1400mm

Layout Size : 18000*5000*25000mm

Weight : About 4,5 - 5 tons
