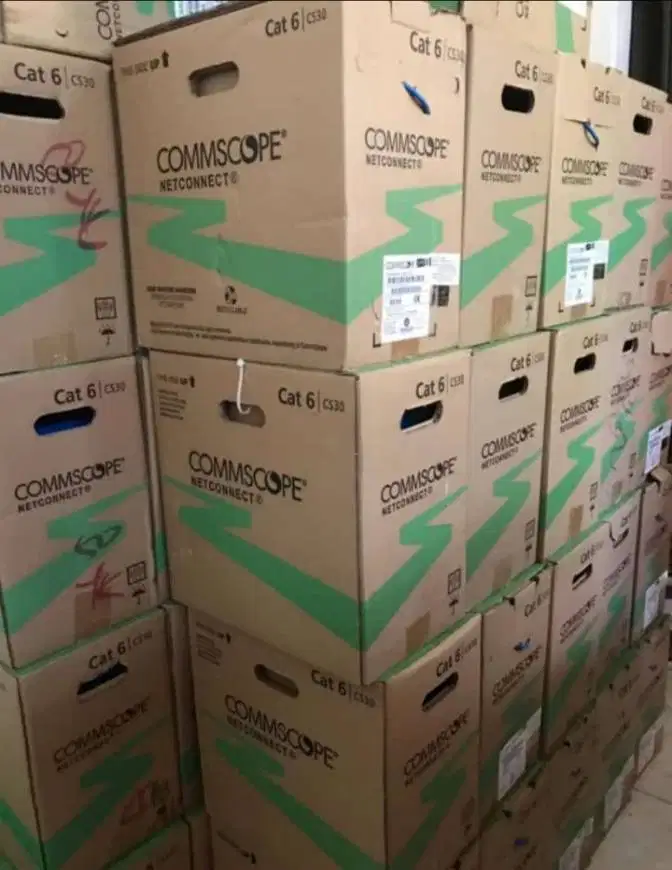

kabel cat6 AMP/COMMSCOPE

24awg 4 pair

PVC jaket

75C

warna biru, panjang 1 roll 305meter/1000feet

kecepatan maksimal 1000mbps

AMP NETCONNECT Category 6 (CAT6) cables exceed TIA/EIA-568-B.2-1 and ISO/IEC 11801:2002

Class E, IEC61156-5, IEC60332-1-2, EN50288-6-1 and EN50173-1 performance requirements, They

comply with all of the performance requirements for current and proposed applications such as

Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TP-PMD, ISDN, analog

(Broadband, Baseband) and digital video and analog and digital voice (VoIP). The cable is available in

white, gray, and blue, and packaged as reel-in-box.

Materials :

Conductors 24 AWG solid bare copper

Insulation Polyethylene, 0.037 in nom dia

Jacket FR PVC,CM

Filler Polyethylene

Electrical Characteristics

Impedance 100 15%, 1 MHz to 250 MHz

Propagation delay 536 ns/100 m max. @ 250 MHz

Skew 45 ns/100 m max. @250 MHz

Mutual capacitance 5.6 nF max/100 m

Conductor resistance 66.58 max/1000 m

Mechanical Characteristics

Bend radius The minimum bending radius is 8x outside diameter during installation and 4x

the outside diameter after installation 1"

Operating temperature -20C to 60C

Storage temperature -20C to 80C

Approvals

UL File Number E138034

ETL Certificate 3162341CRT-001

RoHS Compliant
