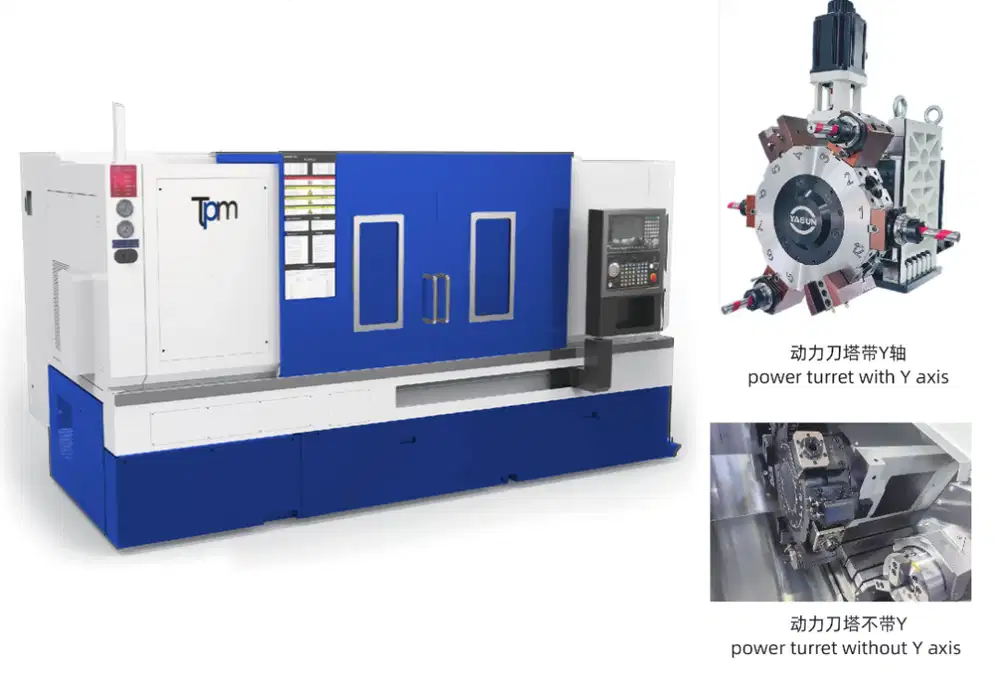

TT70MY-700 Power Turret Tailstock Turning and Milling Compound High End CNC Lathe Machine

Mesin CNC Lathe TPM TT70MY-700

System: Syntec22TB

Configuration: 8"Hydraulic chuck

Machine main features

1. The spindle motor adopts an electric spindle drive with superior output torque, and a symmetrical sinking spindle box with water cooling and heat dissipation to ensure the working temperature, service life, and machining accuracy of the motor

2. Diagonal interpolation Y-axis, high rigidity, Y-axis can be drilled, milled, tapped and other composite processing on the end face or sample face, achieving the machining concept of one-time clamping and complete completion

3. The bed guide rail adopts a high and low rail design, and the bed body is cast as a whole. After multiple aging and heat treatment processes to eliminate internal stress, the machine tool can maintain optimal accuracy and rigidity for a long time

4. Hydraulic detection and adjustment are both installed in a panel style front, using mechanical rotation operation. The hydraulic system pressure can be clearly monitored and adjusted from the front of the machine

5. The X-axis of the machine tool adopts a 30 ° inclined design, with a 45 roller track and a 40 ball screw, which has the advantages of strong ability to counteract heavy cutting vibrations and high precision

6. Auxiliary spindle: The spindle adopts a high-power, high torque, high-speed, and high-precision built-in synchronous electric spindle structure, suitable for processing various parts. It has good low-speed characteristics and is suitable for C-axis cutting. The auxiliary spindle can move at high speed and dock with the spindle, realizing the machining of both sides of the workpiece with a single card.

Kami Presisi Manufaktur Indonesia berdedikasi untuk menyediakan mesin industri berkualitas tinggi dan beragam aksesori mesin untuk memenuhi beragam kebutuhan sektor manufaktur dan produksi. Dengan komitmen kuat terhadap keandalan, efisiensi, dan kepuasan pelanggan, kami menawarkan solusi yang meningkatkan kinerja operasional dan mendukung pertumbuhan bisnis jangka panjang. Baik melayani bengkel kecil maupun fasilitas industri besar, kami berkomitmen untuk menyediakan produk dan layanan yang menggabungkan teknologi canggih dengan nilai praktis, menjadikan kami mitra tepercaya di pasar pasokan industri.

Hubungi Kami untuk pertanyaan dan info lebih lanjut.

Noted: Harga tertera exclude PPN.
