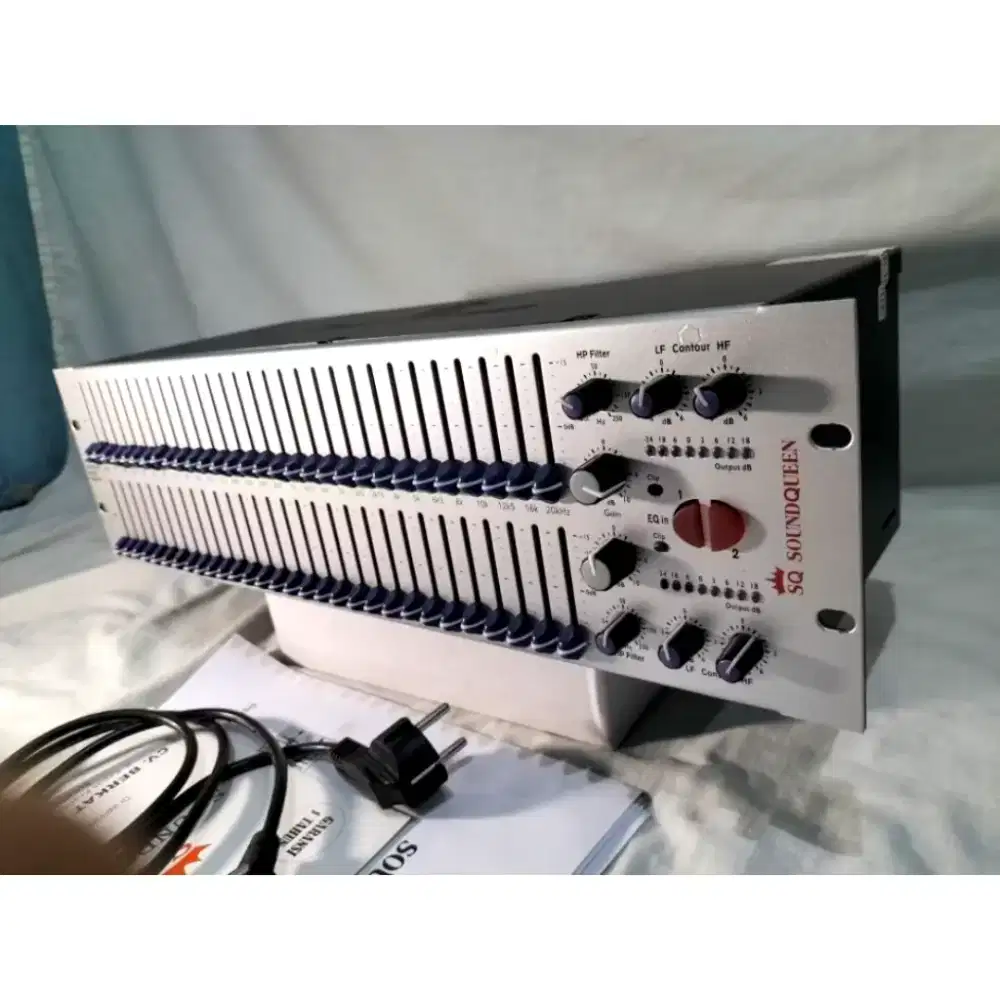

Equalizer Sound Queen EQ6400

Input TRS, female XLR ( 2 hot), and barrier terminal strip

Input RF filtered

Input 40 kOhm, unbalanced 20 kOhm

Max Input;+21dBu balanced or unbalanced

CMRR 40dB, typically 55dB at 1kHz

Output TRS, male XLR ( 2 hot), and barrier terminal strip

Output RF filtered

Output 200 ohm, unbalanced 100 ohm

Max Output21dBu into 2 kOhm or greater18dBm (into 600 ohm)

Bandwidth 20Hz to 20kHz, +0.5/-1dB

Frequency Response 10Hz to 50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range

Dynamic Range 109dB; 115dB

Signal to Noise Ratio 90dB, 97dB

THD+Noise 0 .005%

Interchannel 20Hz to 20kHz

Bypass the graphic equalizer section in the signal path

Low cut Activates the 40Hz 18dB/octave Bessel high-pass filter

Range Selects either +/- 6dB or +/- 15dB slider boost/cut range

I/O Meter 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu

Indicators EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)

Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz

Power Consumption 24W

Power Connector IEC receptacle

Dimensions 5.25x34; H X 19

34; W X 7.9 #34; D (13.4cm x 48.3cm x 20.1cm)

Unit Weight 10.6 lbs.

Shipg Weight 11.6 lbs.
