Preloaded maps: GPSMAP 585 Plus; w/g2; SEA (built-in SEA g2 chart)

Sonar Frequency: 50/77/200kHz CHIRP (Low/Mid/High)

Display: WVGA 480 x 800 pixels

GPS receiver: GPS/GLONASS/BeiDou/internal

Waypoints: 12.000, Power 7.6 Watt

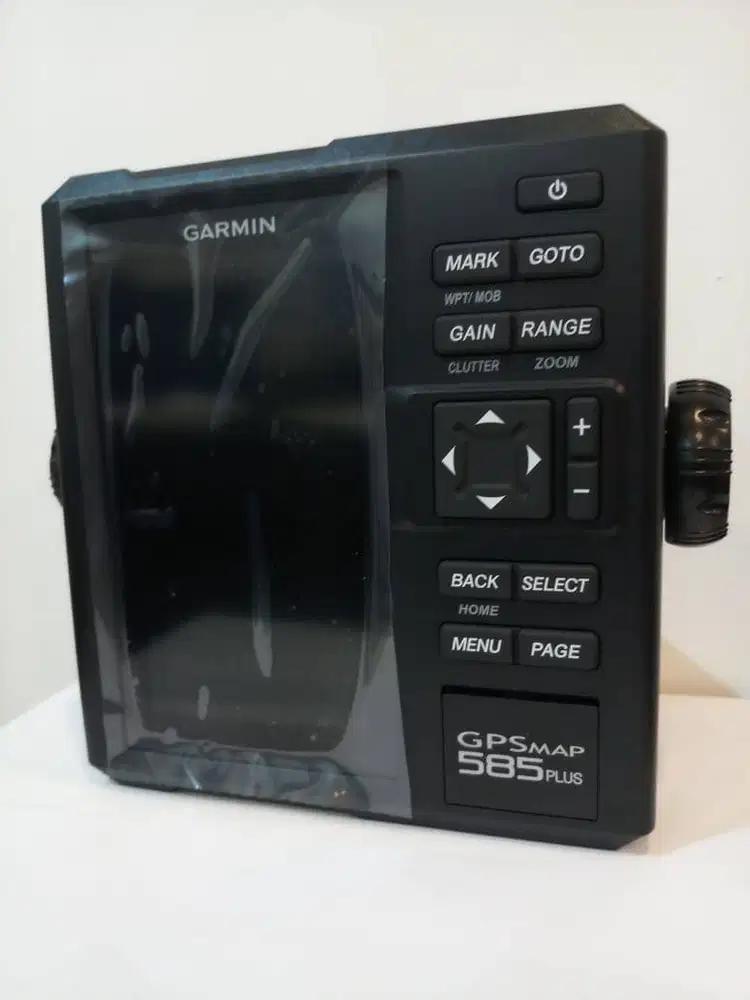

GPSMAP 585 Plus with built-in g2 chart

Power/data cable

Bail mount

Hardware

Documentation

Spesifikasi

External Antenna Available

Connectivity

Transducer Connector Pin Numbers: 8

8-Pin Power/NMEA 0183 Connector: 1

BNC for External GPS Antenna: 1

Number of Routes 200

Power Supply

Power consumption: 7.6 W

Voltage range: 10V - 36V DC input

Additional Map Yes

Number of Waypoints 12000

Dimensi Produk 176.0 mm x 190.0 mm x 66.0 mm

Receiver Type GPS/GLONASS/BeiDou, internal

Basemap Yes

Lain-lain

Water rating: IPX7

NMEA 0183/RS422 compatible

Mounting options: Bail or flush

Accepts data cards: 2 standard SD

Scanning Sonar Frequency: CHIRP 260/455/800kHz

Maximum depth: 2.300 ft, freshwater, 1.100 ft, saltwater (depth capacity is dependent on water bottom type and other water conditions)

Sonar Features: Bottom lock (shows return from the bottom up), Water temperature log and graph, Split-screen zoom, Fish Symbol ID (helps identify fish targets), Sonar recording, Sonar history rewind

Display WVGA 480 x 800 pixels

Number of Tracks one 50.000 points active track; 100 saved tracks

Navigation Features

Garmin Sonar compatible

Supports AIS (tracks target ships position)

Supports DSC (displays position data from DSC-capable VHF radio)

Tide tables

Berat Produk 816.0 g
