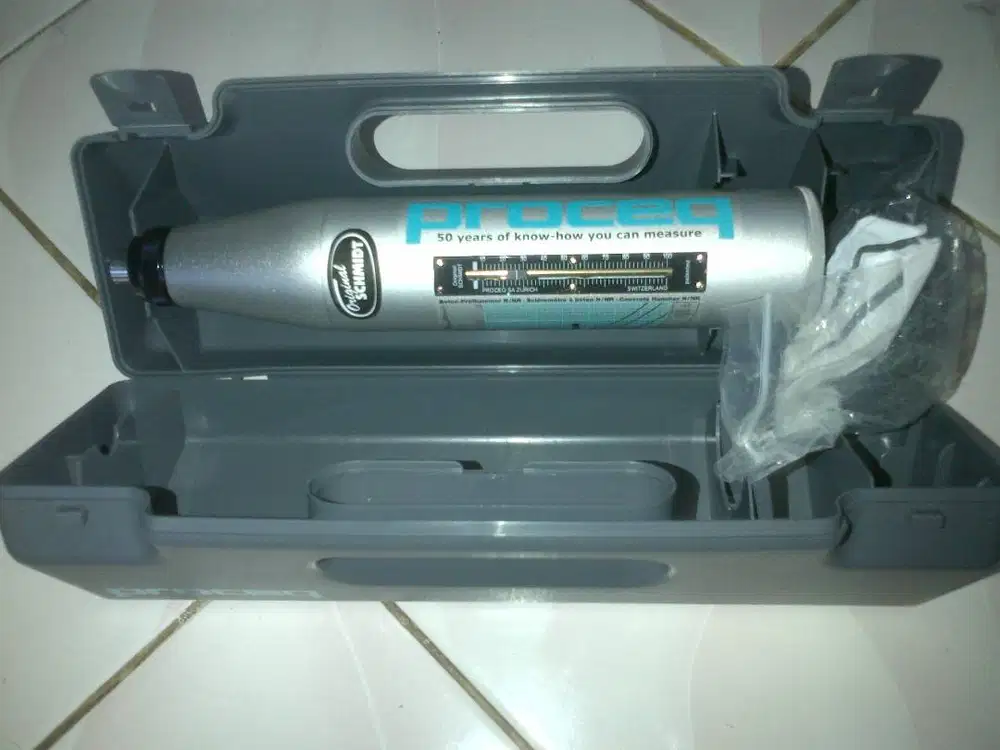

Hammer Test Proceq Original Schmidt type N menjadi dasar setiap standar pengujian palu rebound besar di seluruh dunia. Meliputi versi NR dan LR untuk mencatat nilai rebound secara langsung pada kertas pendaftaran.

Your Benefits Original Schmidt type N:

Various models with different impact energies to cover a wide range of applications

Proven durability and quality compared with low cost copies

Established Proceq Swiss Made accuracy and reliability

Features Original Schmidt type N:

The Original Schmidt is used for the non-destructive measurement of the concrete/mortar compressive strength characteristics

Control of uniform concrete quality

Detection of weak spots in the concrete

The type L/LR Original Schmidt operates with significant lower impact energy, making this test hammer the ideal option for testing thin walled items with a thickness between 50 to 100 mm (2 in. and 4 in.) or for analyzing small components.

It is suitable for examining cast stone components which are sensitive to impact. In rock mechanics, the type L/LR Original Schmidt is commonly used for the classification of rock cores and brittle rock.

Technical Data Original Schmidt type N:

Measuring range : 10 - 70 N/mm2 (1'450 to 10'152 psi)

Impact energy : 2.207 Nm

Paper strip : Yes

Standardization

The following standards can be applied to the Original Schmidt:

ISO/DIS 8045

EN 12 504-2

ENV 206

DIN 1048 part 2

BS 1881 part 202

ASTM C 805

ASTM D 5873(Rock)

NFP 18-417

B 15-225

JGJ/T 23-2001

JJG 817-1993

Warranty Original Schmidt type N:

Standard 2-year limited warranty on electronic parts of the Original Schmidt

Optional extended warranty periods up to 3 additional years
