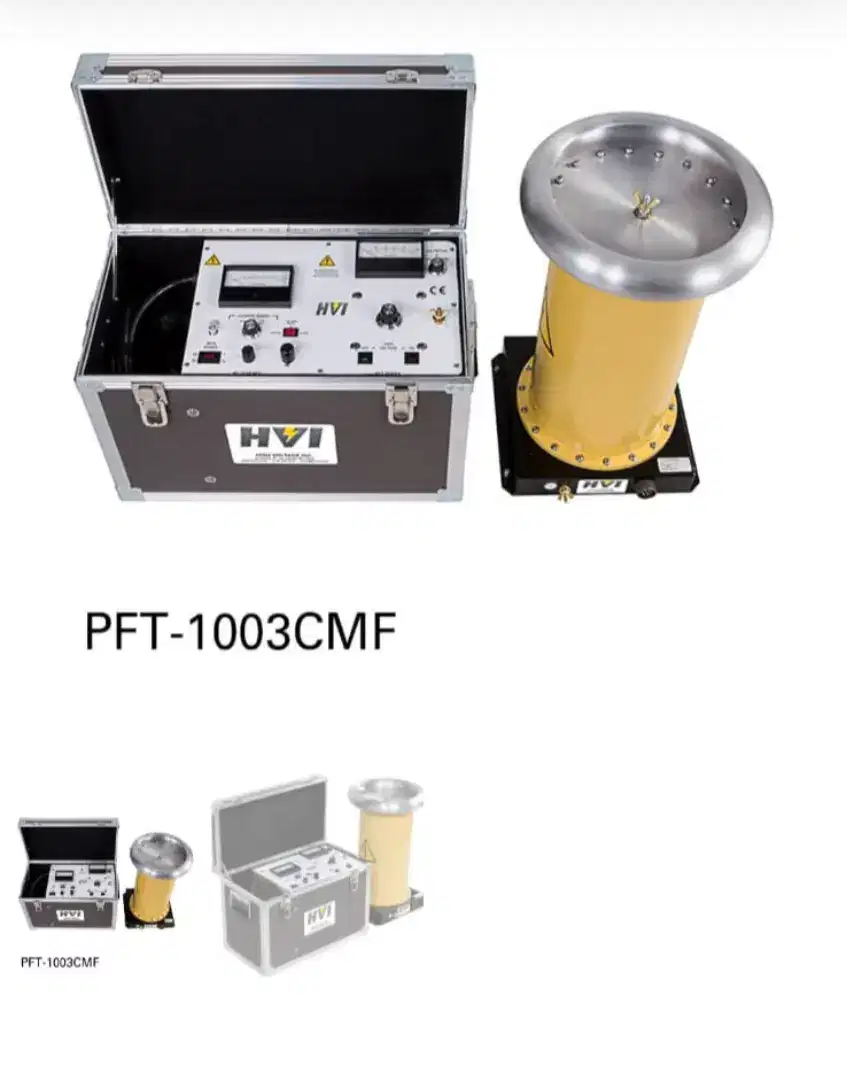

1003CM(F) Portable Ac Test Set Dielectric Strength Hipot 0 – 100 kV @ 3 kVA

Input: 120V, 60Hz, 15A or 230V, 50/60Hz, 8A

Output: 0 – 100kVac, 30mA, 1kVA resistive load, 3kVA capacitive load

Duty: 3kVA: 1 hr on, 1 hour off; 1kVA continuous

Voltmeter: 3.5″, scaled 0-50/100kVac, ±2% FS accuracy

Currentmeter: 3.5″, scaled 0-1mAac, ±2% FS with multipliers x1, x10, x100

Guard/ground load return: 2mA at full current in ground mode

Controls

Voltage output: Continuously adjustable up to max. voltage

Safety

Interlocks: Zero start and external interface

Protection: Surge and transient

Cable Length

Output cable: None: Fibre glass cylinder with spinning (top toroid) output

Size & Weight

Controls: 533mm w x 286mm d x 387mm h, 16kg

HV Tank: 330mm w x 330mm d x 559mm h, 39kg
