Specifications

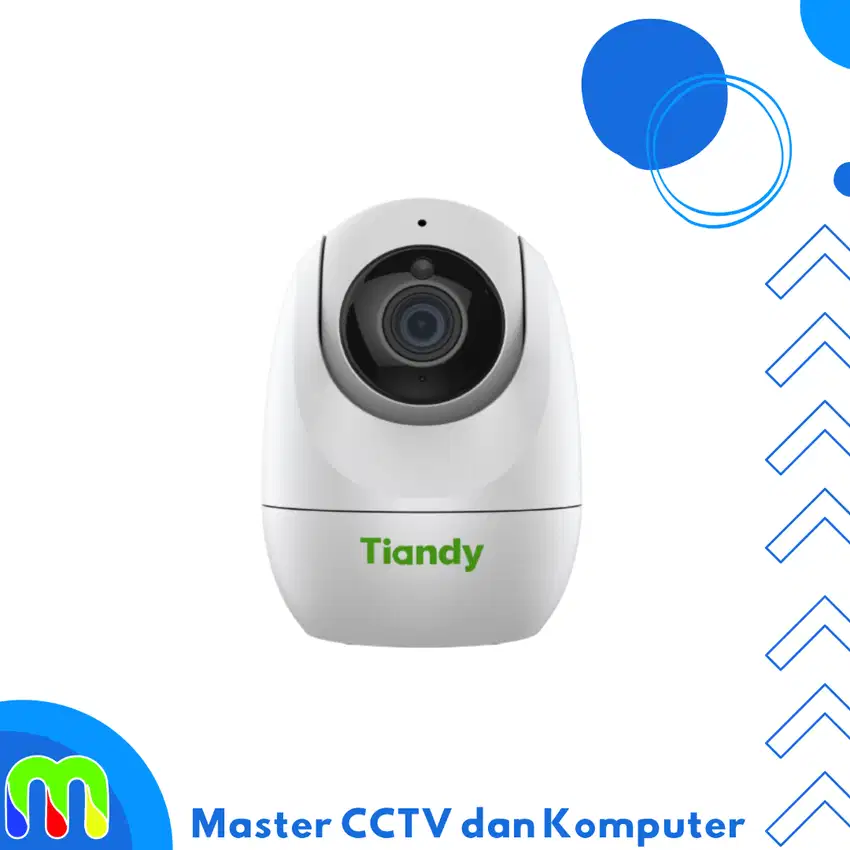

Model TC-H322N Spec: IW/ WIFI/ 4mm/ V4.0

Camera

Image Sensor 1/2.9″ CMOS

Signal System PAL/NTSC

Min. Illumination Color:0.02Lux@ (F2.0, AGC ON), B/W:0Lux with IR

Shutter Time 1s to 1/100000s

Day & Night IR-cut filter with auto switch

Zoom 2X

Lens

Focal Length 4mm

Aperture Range F2.0

Field of View "Horizontal filed of view: 78.6° (w)

Vertical filed of view: 43.2° (w)

Diagonal field of view:96.1°(w)"

Close Focus Distance 2 m

Pan&Tilt

Pan Range 350°

Pan Speed 35°/s

Tilt Range 0°~115°(Default 90°)

Tilt Speed 19°/s

3D Position N/A

Preset 256

Power-off Memory Yes

Illuminator

IR LEDs 4

IR Distance 15m

White LEDs 1, support flash

Compression Standard

Video Compression S+265/ H.265/ H.264 (High profile, Main profile, Baseline)


Max. Resolution 2MP(1920×1080)

Flip Yes

OSD 16×16, 32×32 adaptable size, Total 1 Region

Feature

Auto-Tracking Yes, based on human- detection

Network

Protocols HTTP/ TCP/ UDP/ DHCP/ RTMP/ RTSP/ FTP/ NTP/ DNS

System Compatibility ONVIF (PROFILE S/T), SDK, CGI, RTSP

Remote Connection ≤2

User/Host Up to 8 users. 4 user levels

WIFI

Transmission distance Up tp 30m(s based on actual environment)

Wireless standard IEEE 802.11b/ 802.11g/ 802.11n

Frequency range 2.4 GHz ~ 2.4835 GHz

Interface

Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port

Built-In Mic Yes

Reset Button Yes

On-board storage Built-in Micro SD card slot, up to 512 GB

General

Power Supply DC12V±25%

Power Consumption 6W

Heater N/A

Material Plastic

Package/Boundary Dimensions Φ95x160mm (Φ80x113mm)

Gross/Net Weight 0.38kg (0.22kg)
