TECHNICAL DATA

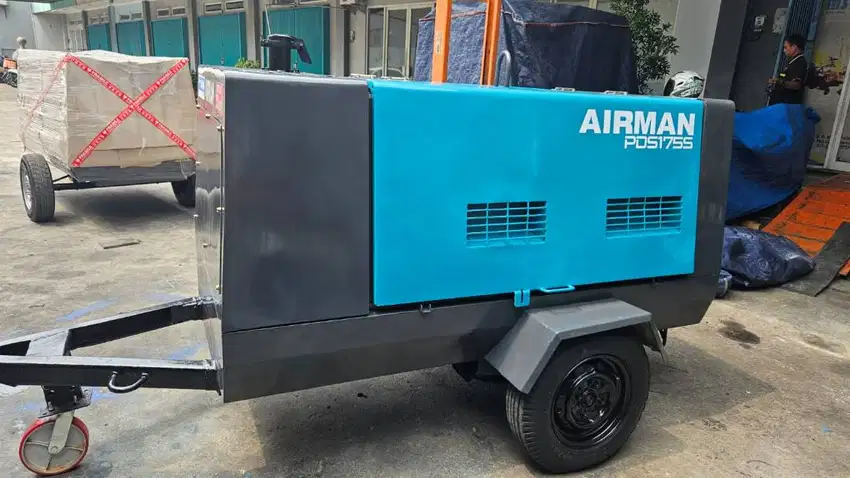

Type Model : AIRMAN PDS 175 S

( Portable Serries / Trailler Model )

> type: rotary twin screw, single-stage, oil-cooled

> free air delivery m3/ min : 5.2

> rated operating pressure kg/ cm2( PSIG) ( kPa) : 7( 100) ( 690)

> receiver tank capacity m3 ( US gal) : 0.02( 5.3)

> air outlets : 20A( 3/ 4 " ) x2pcs

> engine make/ model : YANMAR 4TNV88 / NISSAN TD23 / ISUZU C240

> type : 4 cycle water cooled direct injection type

> no.of cylinder : 4

> total displacement cc : 2, 189

> rated output PS ( kW) / rpm : 49.5( 36.4) / 3, 000

> fuel tank capacity liters ( US gal) : 90( 23.8)

> Lubrican oil capacity liters ( US gal) : 7.4( 2.0)

> dimension & weight

--overall length mm ( inch) : 2, 960( 117)

--overall width mm ( inch) : 1, 650( 65)

--overall height mm ( inch) : 1, 510( 59.4)

--weight ( dry) kg( lb) : 860( 2, 116)

--weight ( wet) kg( lb) : 960( 2, 116)

> tire size : 175r13 8prx2w

NOTES

Untuk Model yang tersedia harap hubungi Penjual

Informasi penjual

PT. Agusta Mitra Sukses

Jl. HOS Cokroaminoto No.35

Kel. Kreo, Kec. Larangan

Kota Tangerang, BANTEN
