iCraft B760M WIFI CPU Supports 12th/13th Gen Intel Core LGA 1700

MEMORY 4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Supports Intel XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

ONBOARD GRAPHICS 1x DisplayPort 1.4

1x HDMIport

*HDMI port supports up to 4K@30Hz

*Graphics specifications may vary between CPU types. Please refer to www . intel . com for any updates.

EXPANSION SLOT 1x PCIe 5.0 x16 slot

1x PCIe 3.0 x4 slot

1x PCIe 3.0 x1 slot

STORAGE M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB *Front USB (Total 7 ports)

1x USB 3.2 Gen2 Type C

2x USB 3.2 Gen1 Type A

4x USB 2.0

*Rear USB (Total 9 ports)

1x USB 3.2 Gen1 Type C

4x USB 3.2 Gen1 Type A

4x USB 2.0

LAN Realtek RTL8125B 2.5G LAN

WIRELESS / BLUETOOTH Intel Wi-Fi 6E AX211

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3

AUDIO Realtek ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

INTERNAL I/O 1x 24-pin Power Connector(ATX_PWR)

1x 8+4-pin Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

3 x M.2 slots (Key-M)

4x SATA 6Gb/s ports

1x M.2 slots (Key-E)

1x 4-Pin BUZZER

2x 5V 3-Pin ARGB

1x 12V 4-Pin RGB

1x Clear CMOS

1x Front Audio

1x COM_A Port

1x TPM pin header(Support TPM 2.0)

1x RGB Button

1x POWER Button

LED FEATURE 4x Distributed Debug LED

OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR M-ATX

245mm x 245mm

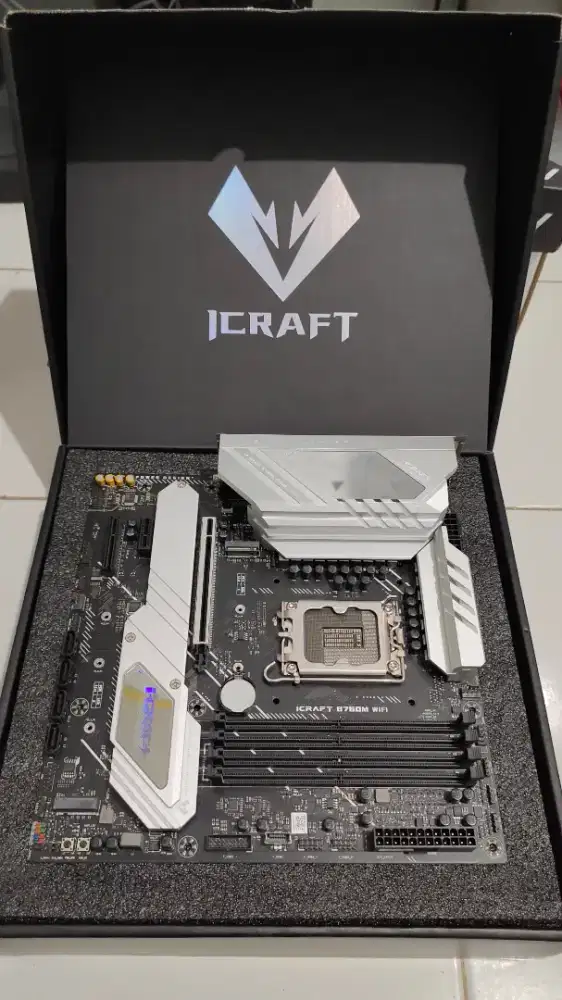

Pembelian Mey 2024

GARANSI RESMI 3 TAHUN ( masih ada 2 tahun )

minus

- pin RGB patah 1

- lock PCIe utk VGA patah

mesin normal 100% tidak menganggu performance

Bisa nego dikit

Cod jaksel
