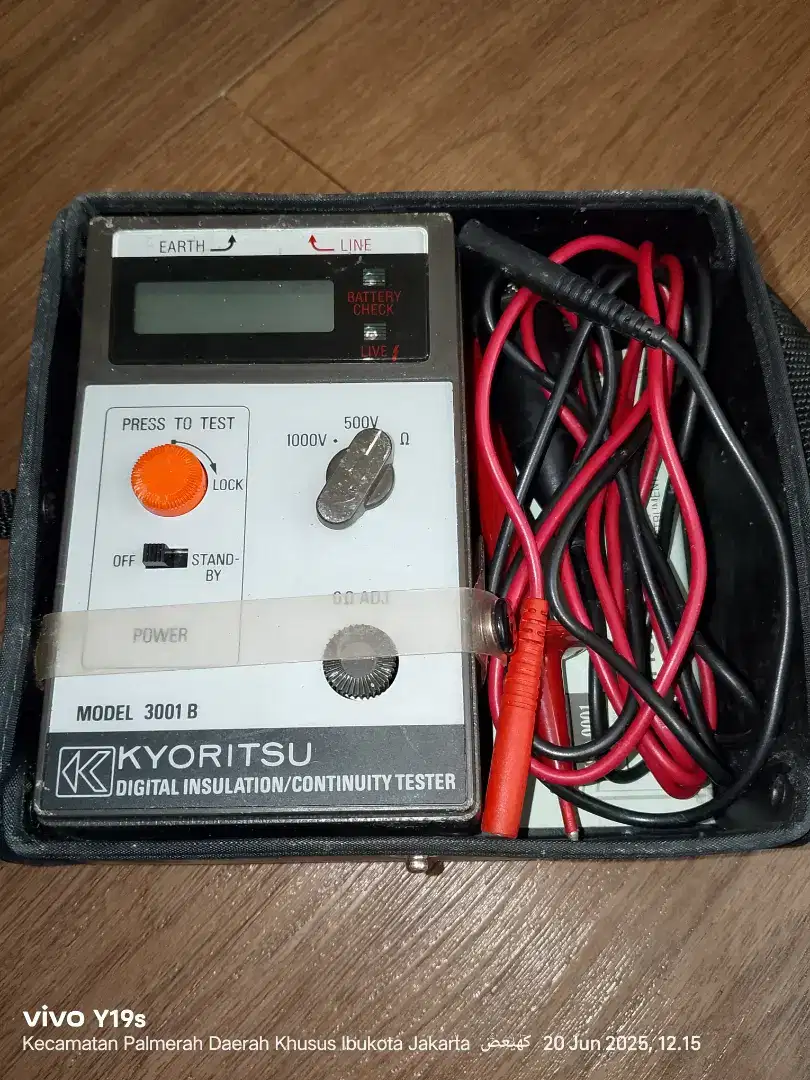

KYORITSU DIGITAL INSULATION / CONTINUITY TESTER MODEL 3001B

INSULATION RESISTANCE

TEST VOLTAGE 500V/1000V

MEASURING RANGES

(MID-SCALE VALUE) 200M (2/20/200M)

AUTO RANGING OUTPUT VOLTAGE

ON OPEN CIRCUIT RATED TEST VOLTAGE +12%

RATED CURRENT 1~1.1MA DC APPROX

ACCURACY |2%rdg 1dgt

CONTINUITY TEST

MEASURING RANGES

(MID-SCALE VALUE) 200(20/200) AUTO RANGING.

OUTPUT VOLTAGE

ON OPEN CIRCUIT 600 mV DC APPROX

OUTPUT SHORT

CIRCUIT CURRENT 6 mA APPROX

ACCURACY : |2% rdg 0.1|1 dgt.

GENERAL WITHSTAND VOLTAGE 2200V AC FOR 1 MINUTE.

POWER SOURCE: R6P (AA) (1.5V) 8

DIMENSIONS : 144(L) 93(W) 61(D) mm

WEIGHT : 460 Gram APPROX

ACCESSORIES : 7025 (TEST LEADS)

POUCH FOR TEST LEADS 9050 (CARRYINH CASE) R6P (AA) 8.

INSTRUCTION MANUAL.
