Electrics:

220 /230 Volt, 3 Phase

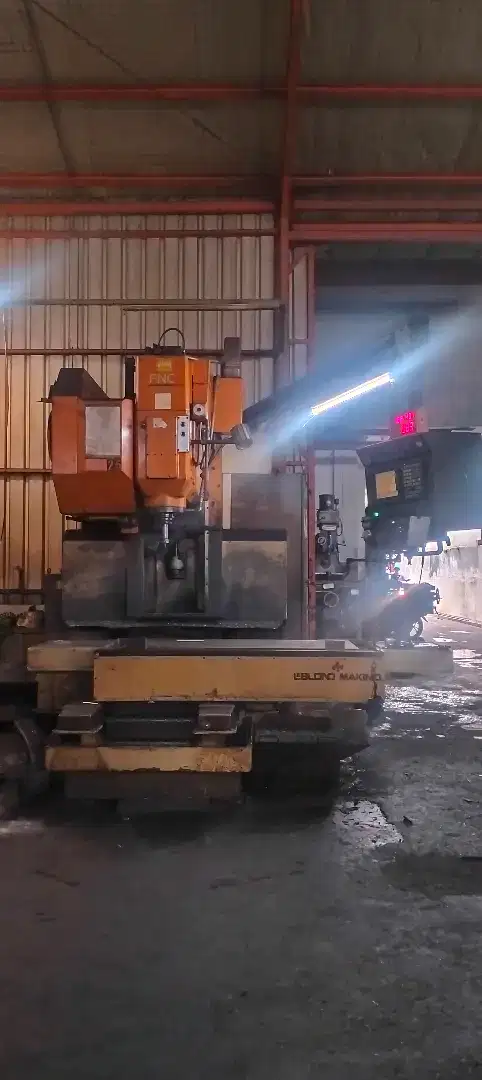

Manufacturer: Leblond Makino

Model: FNC106-A30

Year: 1989

Main Unit Approx Weight: 18000.00 lbs / 8164,6627 kg

Main Unit Dimensions (in inches): Length: 152.00" (386.08 cm) Width: 127.00" (322.58 cm) Height: 120.00" (304.8 cm)

Components:

Coolant Tank: Length: 76.00" (193.04 cm) Width: 28.00" (71.12 cm) Height: 12.00" (30.48 cm)

Specs:

Machine Control: GE Fanuc OM CNC

Table Size: 55-1/6" x 23-5/8"

Machine Travels (X/Y/Z): 41-5/16" x 23-5/8" x 22"

Table Capacity: 3300 Lbs (1496.855 kg)

Spindle Taper: Cat 50 Taper

Spindle Speeds: 10 - 3,500 RPM

Tool Changer Style: Side-Mount, Twin-Arm

Tool Changer Capacity: 30 Stations

Max Tool Length: 16" (40.64 cm)

Max Tool weight: 33 Lbs (14.9685 kg)

Spindle Drive: 20 HP

Spindle To Table Distance: 8-7/8" - 30-7/8"

Spindle Center to Column Distance: 25-5/8"
