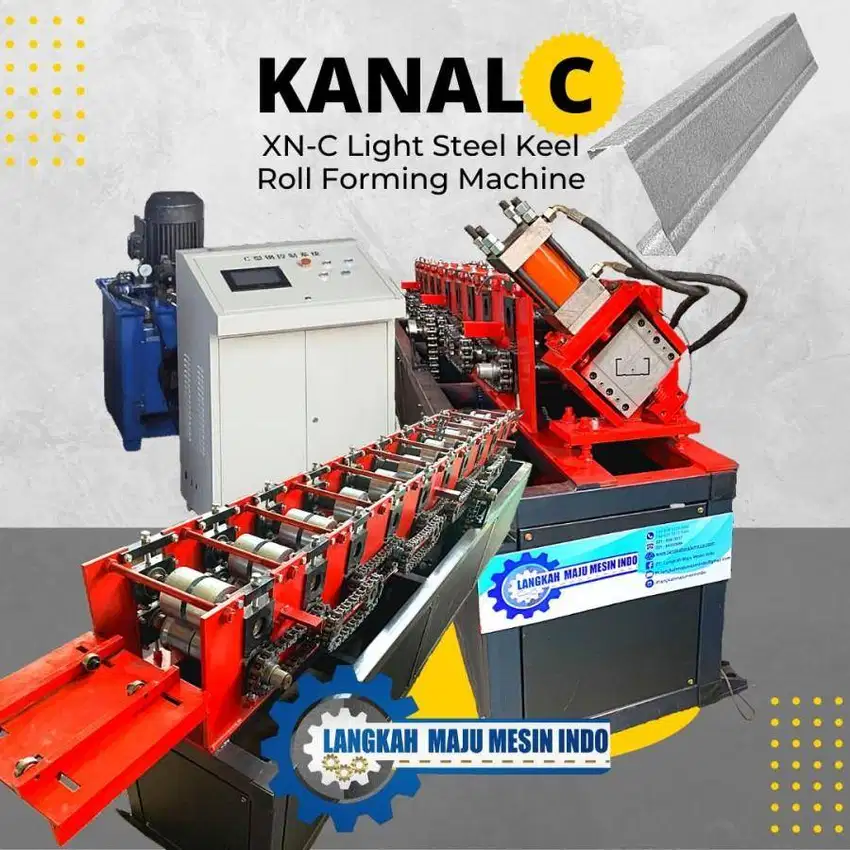

Mesin Baja Ringan Kanal C / Mesin Kanal C / XN-C Light Steel Keel

* Harga Mesin Kanal C : Rp 170.000.000

* Diharapkan konfirmasi terlebih dahulu sebelum melakukan pemesanan / untuk bertanya lebih langsung tersedia berbagai tipe sesuai dengan kebutuhan anda dengan penambahan servo / high speed / penggunaan high material untuk mesin dan roll silahkan hubungi kami

.

MATERIAL:

1) Coil width : 151mm

2) Coil thickness : 0.350~0.8mm

3) Material : PPGI, GI, Aluminum

MACHINE COMPONENTS :

1) Electric Decoiler *1 set (capacity 1.5 tons)

2) Feeding Table *1 set

3) Roll forming machine *1 set

4) Post cutting device *1 set

5) Hydraulic station *1 set

6) Control cabinet *1 set

7) Support table *1 set (3M length)

WORKING FLOW工 :

Decoiler - Feeding - Roll forming - Cutting - Run out table V

Feeding material

Type : PPGI, GI, Aluminum

Thickness : 0.45~0.8mm

Width : 151mm

Manual Decoiler : Type Electric

Max. Capacity : 1.5 tons

Suitable Width : 250mm

Feeding Table / Usage : Can adjust and fix the width by manual

Capacity : 40m/min

Machine size: 3800*700*1100mm

Weight : About 1.5tons

Roll forming part

Main frame : 60mm square pipe welding with plate GB Standard

Wall plate : 12mm thickness steel plate GB Standard

Roller station : 10 rows

Roller material : 45# steel

CNC machining

Chroming

Diameter of shaft Φ40mm

Shaft material : 45# steel

Transmission : 0.6 inch chain drive GB Standard

Main Motor : 4kw Good quality China brand

Cutting device

Type : Hydraulic

Cutter blade : Cr12 with quenched treatment 60-62℃

Hydraulic device

Motor power : 3kw Good quality China brand

Oil type : #46

Voltage 380V, 50 Hz, 3 phase

Extra Control Box

Touch Screen , Electric Inverter , Delta PLC , 2 Language (Chinese & English)

PLC XINJE Made in China

Touch screen MCGS Made in China

Encoder Wuxi Ruipu Made in China
