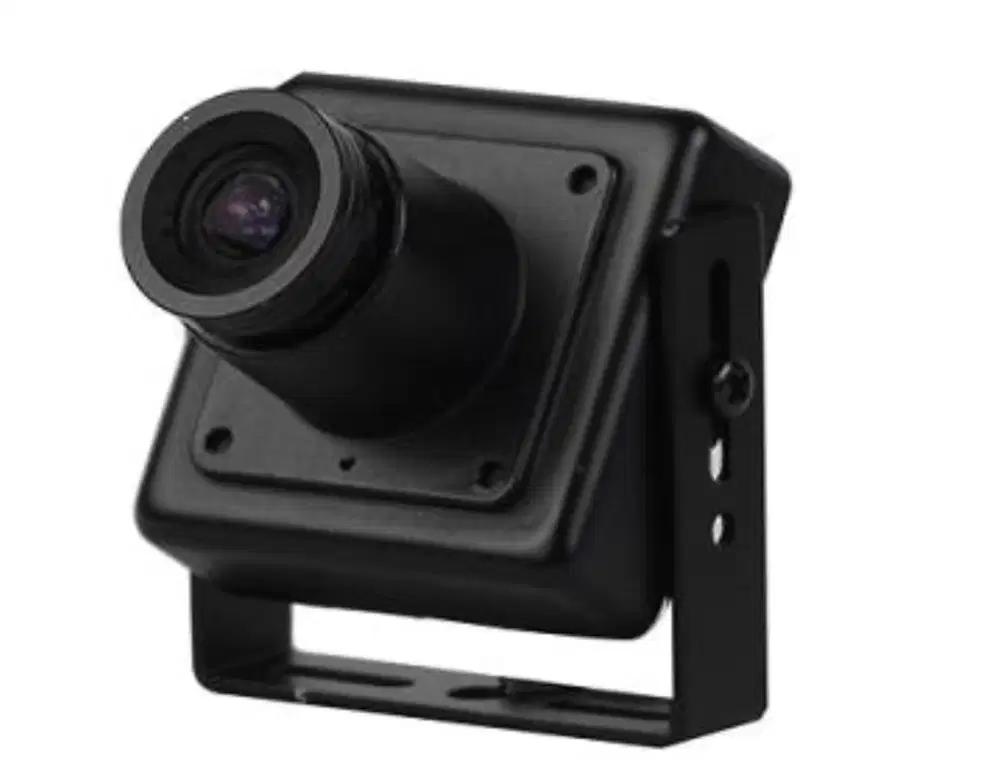

Mini Spy camera with SONY/CMOS Color CCD

Lens: 3.6mm Board Lens

Size: 35mm x 10mm x 35mm

Weight: 0.12kg

General Specifications (All Models):

TV System: NTSC / PAL

Video Out: 4 IN 1 (TVI, CVI, AHD, CVBS) - Dip-switch Optional

Minimum Illumination: 0.001Lux

Lens: 3.6mm Board Lens (2.8mm Optional)

Sync System: Internal Synchronization

Scanning System: 2:1 Interface

Shutter Speed: 1/60~1/100,000sec (N), 1/50~1/100,000sec (P)

S/N Ratio: ≥ 58dB

UTC: Yes

Power Source: DC12V ±10%

Power Consumption: <5W

Operating Environment: -20℃ ~ 60℃ / 10% ~ 95%RH

Working Humidity: ≤90%

Model Specific Specifications:

Model: VM-AB20FHD

Chipset Solution: 1/2.7" 1080P 2MP CMOS Sensor (Low illum F37 + FH8536H)

Resolution: 1080P @ 25fps(PAL), 30fps(NTSC)

Effective Pixels: 1920(H)×1080(V)

DNR / DWDR: Yes / Yes

OSD: No
