The Ramsa (Panasonic professional audio division)
WR-S4416 is a 16-channel, 4-bus professional analog mixing console with the following key specifications:
Input Channels 16 channels : each with balanced XLR mic preamps and balanced TRS 1/4" line inputs
Phantom Power :
Individually switchable 48V phantom power for each XLR input
Buses : 4 group outputs and stereo left/right master outputs
Auxiliary Sends :
4 auxiliary sends (1/4" outputs), two of which are switchable pre/post-fader
Equalization (EQ) :
3-band channel EQ with sweepable midrange frequency
Outputs : Variable direct output for every input channel, 4 XLR group outputs, and master left/right outputs
Faders : High-quality 100mm faders for precise level adjustment
Metering : VU-response, bar-graph metering for group and master outputs (switchable to monitor aux levels)
Monitoring : PFL (pre-fader listen) system, talkback microphone input, and monitor outputs
Connectivity : All inputs and outputs are balanced to reduce noise
Dimensions : (WxHxD) 750mm x 151mm x 558mm (approx. 29.5" x 5.9" x 22")
Weight : 21 kg (approx. 46 lbs)
The console is known for its high-performance preamps with a wide 64dB trim range, flexible routing options, and durable "built like a tank" construction.

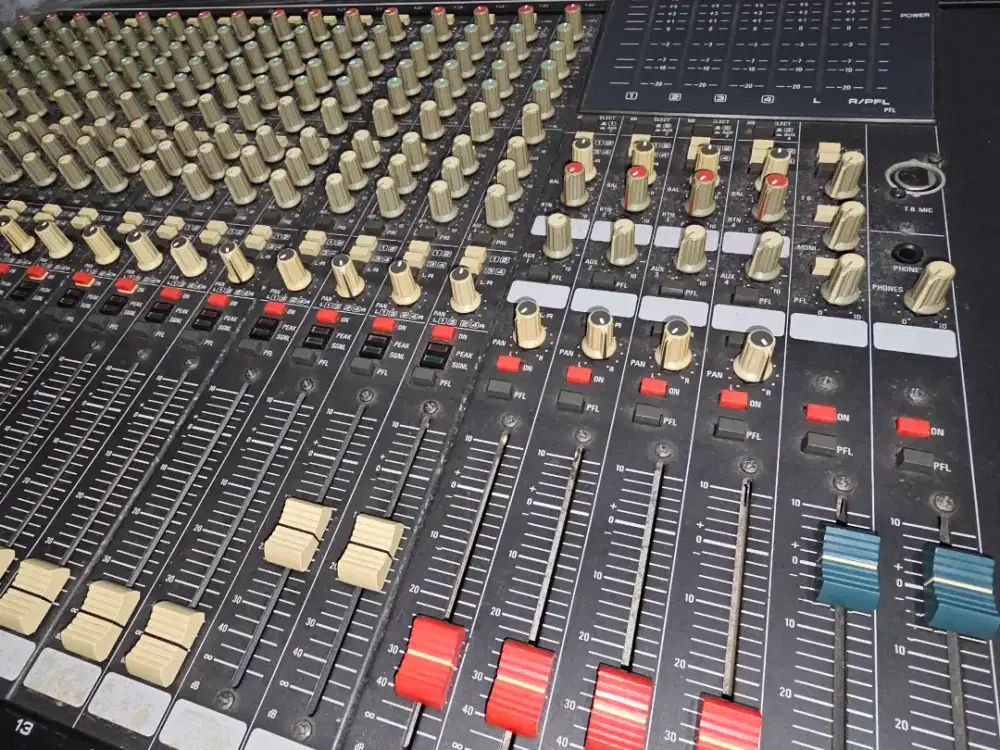

Mixer profesional RAMSA WR-S4416
