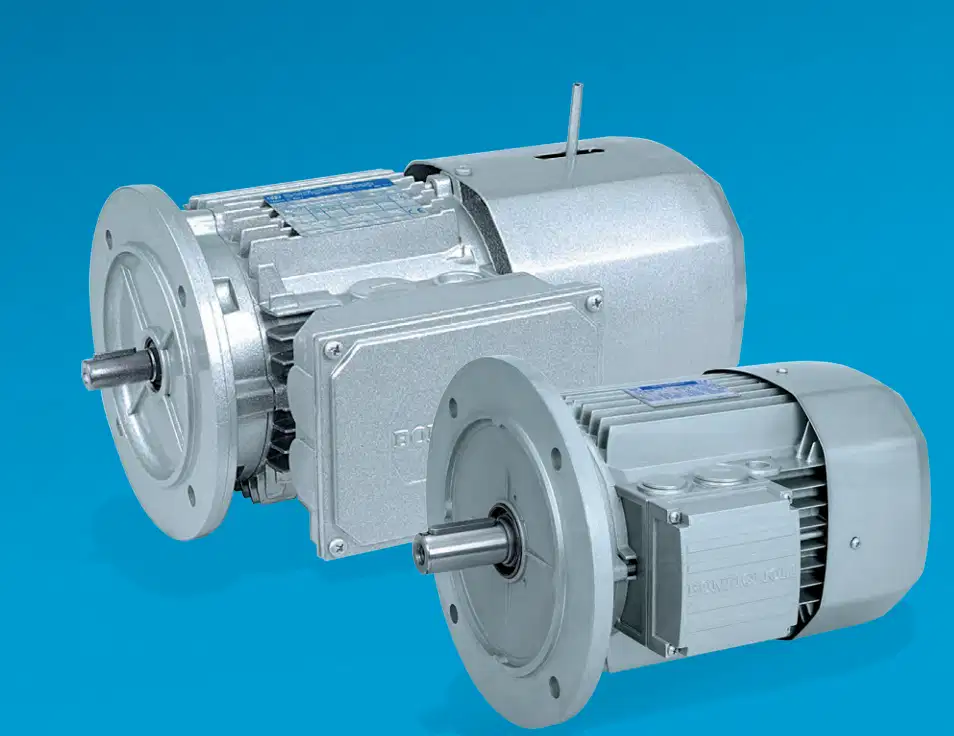

Motor Bonfiglioli BN90S4FD

MOTOR

SERIES BN - AC IE1 Three Phase Motor

SIZE 90S - Motor Size 90S

POLE NUMBER 4 - 4 Poles

VOLTAGE-FREQUENCY 230/400-50 - 230 [V] Δ - 400 [V] Y

50 [Hz]

DEGREE OF PROTECTION IP55 - Standard and Brake Motors

INSULATION CLASS CLF - Standard Insulation Class

MOTOR EXECUTION B5 - B5 Motor Mounting Flange

BRAKE OPTIONS

BRAKE TYPE FD - DC Brake

Page 2

TECHNICAL DATA

Measurement Internat. System IMPERIAL

Frequency [Hz] 50

n Motor Speed [min-1] 1390

Mn Motor Nominal Torque

[Nm] 7.6

Tn Motor Nom. Torque [lb-in] 67

η100 Efficiency 100% [%] 76.50%

η75 Efficiency 75% [%] N/A

η50 Efficiency 50% [%] N/A

In 230V Nomin.Curren.@

230V[A] N/A

Cosφ 0.77

Pn Motor Nominal Power [kW] 1.10

Pn Motor Nominal Power [Hp] 1.47

Pn-60 Motor Nominal Power

[kW] 1.30

Pn-60 Motor Nominal Power

[Hp] 1.74

In Nominal Current [A] 4.7/2.7

Motor Weight [lb] 36.2

Mn Motor Nom. Torque 60Hz

[Nm] 7.3

Tn Mot. Nom.Torq. 60Hz [lb-in] 65

VOLTAGE MIN-MAX 380-415 VY

Page 3

CURRENT MIN-MAX 2.72/2.77 A
