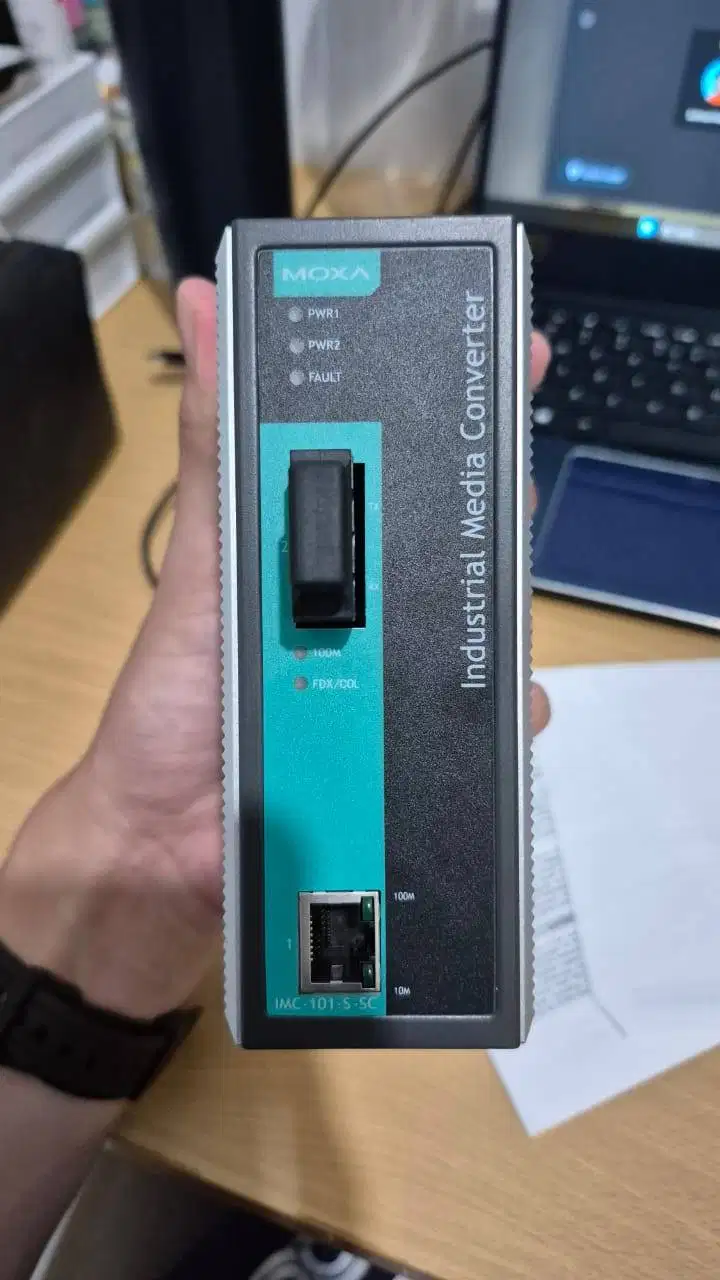

Network Interface

- 1x RJ45 Ethernet Port (10/100BaseT(X))

- 1x SC Single-mode Fiber Port (100BaseFX)

- Built-in 1.5 kV magnetic isolation protection

Power Specifications

- Input Voltage: 12 to 45 VDC

- Current: 200 mA

- Power Connector: Terminal block

- Overload current protection supported

Durable & Compact Design

- Sturdy metal housing with IP30 rating

- DIN-rail mounting for easy installation

- Dimensions: 53.6 x 135 x 105 mm

- Weight: 630 g

Wide Operating Range

- Operating Temp: -40°C to 75°C

- Storage Temp: -40°C to 85°C

- Humidity: 5% to 95% RH (non-condensing)

Certifications & Compliance

- EMC: EN 55032/24

- EMI: CISPR 32, FCC Part 15B Class A

- EMS: IEC 61000 series (ESD, RS, EFT, Surge, CS, PFMF, Voltage dips)

- Safety: EN 60950-1, UL 60950-1

- Vibration & Environmental Testing: IEC 60068 series

- Hazardous Locations: ATEX Zone 2, UL Class I Div.2, IECEx

- Maritime: DNV Certified

High Reliability

- MTBF: 401,000 hours (MIL-HDBK-217F standard)

Bantu jual punya teman.
