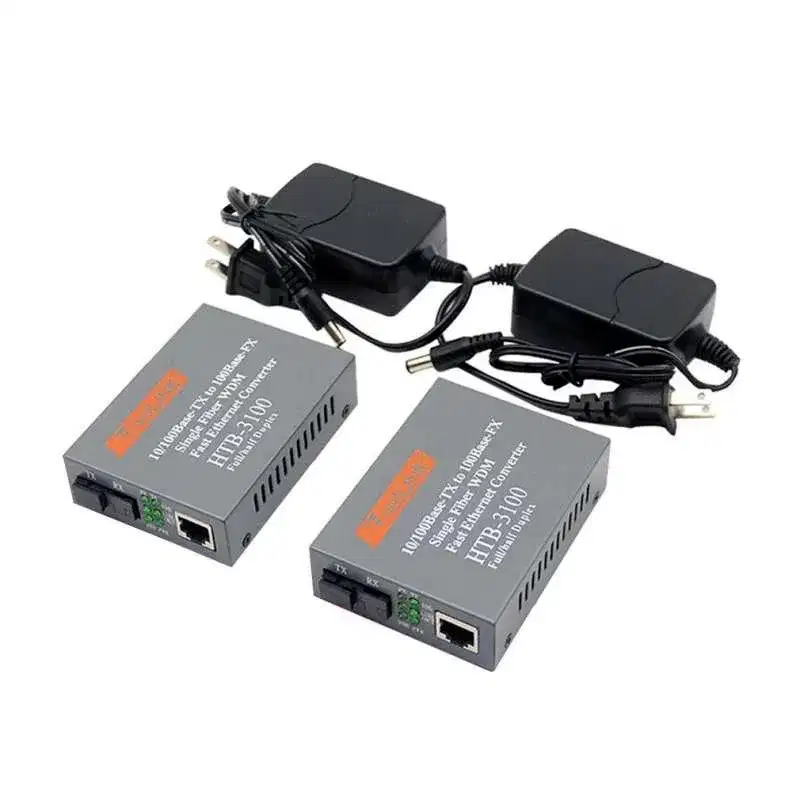

NetLink HTB-3100 A/B 10/100M Single Mode Fiber Media Converter

Feature

- The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

- Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.

- UTP port supports MDI / MDI-X auto crossover

- Supporting flow control

- Supporting 1552 Byte packet

- Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

- Design of internal or external power supply for selection by users

Specification :

- Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX

- MAC address table: 1K

- Connector:

- UTP: RJ-45 10/100Mbps;

- Fiber: SC 100Mbps

- Cable:

- UTP: Cat. 5 UTP (the max distance up to 100m)

- Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)

- Flow Control:

- Full Duplex: IEEE802.3x

- Half Duplex: Backpressure

- LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.

- Power: AC 110V - 220V to DC 5V; DC48V to DC 5V

- Ambient temperature:0 ~ 50?

- Storage temperature:-20 ~ +70?

- Humidity: 5% ~ 90%

- Dimensions:

- Internal power: 30x110x140mm

- External power: 26x70x93mm

Barang oke, harga murah, bergaransi.

Info lebih lanjut untuk fast respon langsung SMS / Whatsapp Kami aja ya guys! atau search maxi komputer di Google

Lokasi toko kami :

Maxi komputer

Jln. Rajawali No. 6 Demangan Baru

Jogja

Ancer ancer

Depan RRI Gejayan Masuk Jln ( ke arah timur ) Ketemu belokan kiri pertama ( ke arah utara ) belok kiri Lokasi Maxi Komputer disebelah Timur jalan sebelum masjid Sudirman

*harga sewaktu - waktu dapat berubah. Hubungi langsung untuk memastikan stock dan harga
