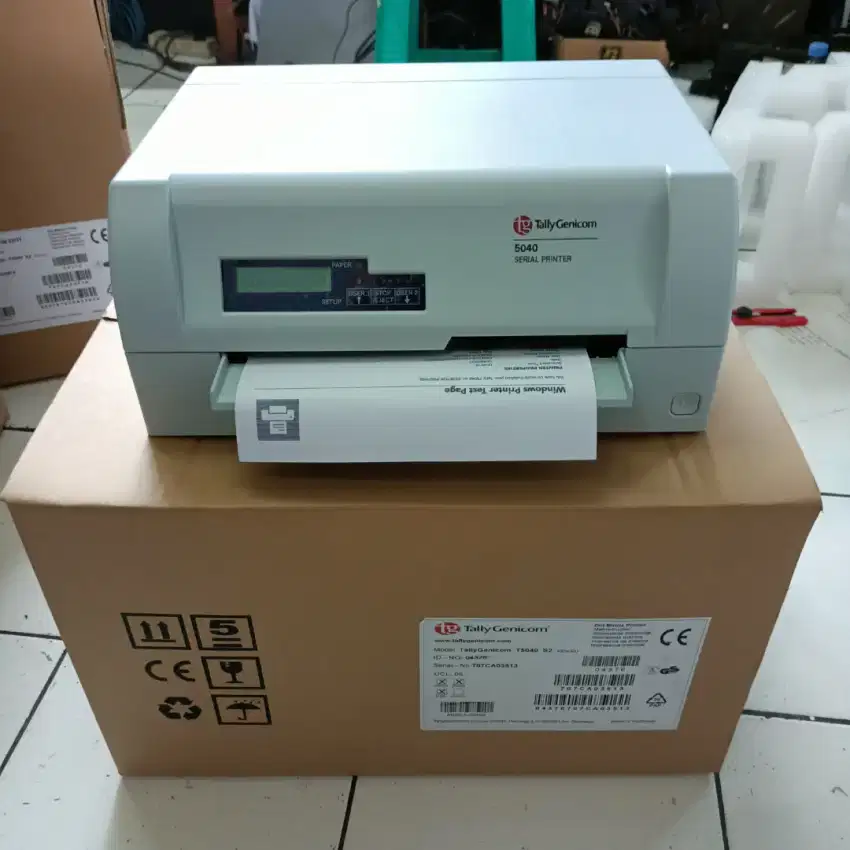

TallyGenicom 5040 Printer base version

TallyGenicom 5040 Printer base version with second serial interface

TallyGenicom 5040 MSR-H Printer with Horizontal Stripe Reader/Encoder (MSR)

TallyGenicom 5040 MSR-H Printer with Horizontal Magnetic Stripe Reader/Encoder (MSR), with second serial interface

TallyGenicom 5040 Printer Specification

Print Speed

cpi: Draft normaDraft high speed Q normaQ high speed Resolution

HorizontaVertical 60, 180 (depending on application)

Character Density

vetti emulations only), 17.1, 20cpi

Line Density

6 and 8 lpi, and in increments up to 1/360th inch

Character Sets

IBM PC2 (13 national character sets) ISadditional character sets available from CD-ROM

Printhead Life

300 million dots/wire

Standard Connectivity

RS232, 9 pin D-Sub male connector; USB-2; Parallel Centronics IEEE1284; 32KB input buffer

Optional Connectivity

Second serial interface; TGNet Ethernet 10/100BaseT adapters

Standard Emulation

Epson ESC/P, IBM 4722, Olivetti PR50/PR2/PR2e, IBM PP XL24e

Fonts

Draft, Roman, Sans Serif, Courier, Bold, Prestige, Script, Orator, Gothic, OCR-A/B; Barcodes: UPC/A, UPC/E, EAN8, EAN13, Code 39, Code 128, Code 93, Codabar, 2/5 Interleaved, and 2/5 Industrial

Consumables

10 million character cassette

STD Paper Handling

Document feed- horizontally from the front, Automatic alignment, Automatic loading, Automatic left edge sensing

Number of Copies

Original + 4 copies

Paper Type

Passbook and cut sheet/forms

Paper Weight

Passbook (sewn on pages) 75-120 g/m2; cut forms 60-180 g/m2

Paper Size

Passbook - max. 2.0mm thickness, including covers; cut sheet/forms - width 70 to 240mm (2.8 to 9.4"), length 70 to 500mm (2.8 to 19.7")

Physical Weight

22lbs

Physical Size

6.6" H x 14.9" W x 11.0" D

Power Voltage

120/230 VAC; 73W Printing,
