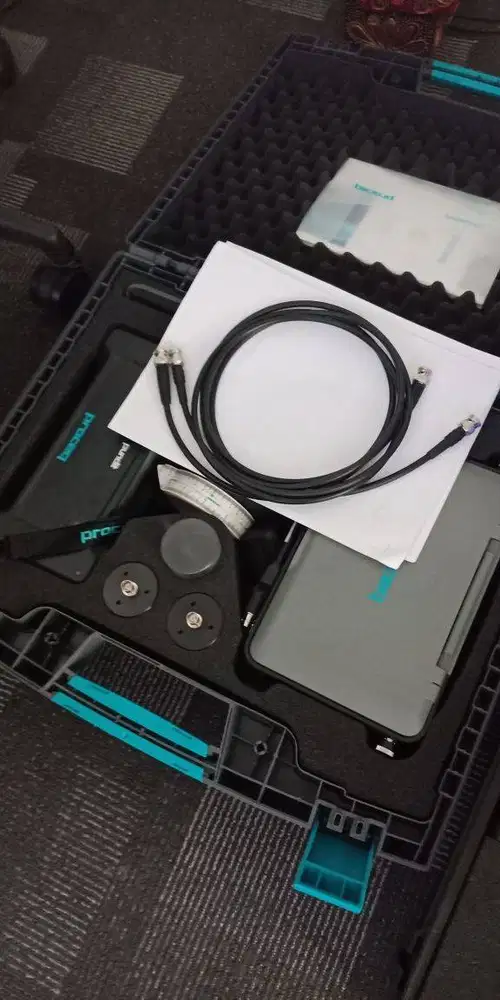

The Pundit PL-200 is a best-in-class Ultrasonic pulse velocity (UPV) test instrument to examine the quality of concrete and other materials such as rock, wood and ceramics.

It provides an extended range of measurement modes and superior features for on-site testing: Assess the concrete uniformity using standard A-Scans, Line Scans and the new Area Scan functionality, estimate the compressive strength of concrete or measure the surface velocity and the depth of perpendicular cracks. The Data Logging measurement mode allows the automation of long term measurements.

The intelligent software supports directly accessible settings in real time from the measuring screen. The highest resolution and sharpest image available in the market allows best possible analysis of the measured waveforms.

Proceq offers an extensive range of transducers for the Pundit PL-200 providing highest accuracy and a proven field track record.

Features

Line scans for concrete uniformity assessment

Zoom and scroll for precise A-Scan inspection

Area Scan Mode extends the possibilities for uniformity testing of larger structures

Data logging allows the automation of long term measurements

E-Modulus measuring mode to determine the Poisson's Ratio of materials

On board storage and review of waveforms

Settings directly accessible on measuring screen

Dual cursor for manual A-Scan evaluation

Separate cursor to measure signal amplitude

Improved surface velocity measurement

Automatic and manual triggering and user adjustable trigger threshold

A-Scan update rate up to 25 Hz

Expandable with Pundit Pulse Echo transducer

Specifications

Range 0.1-7930 µs

Resolution 0.1 µs (< 793 µs), 1 µs (>793 µs)

Display 7” Colour, 800 x 480

Pulse Voltage 100 – 450 Vpp

Bandwidth 20 – 500 kHz

Receiver Gain 1X – 10,000X (0-80dB) 11 steps

Memory 8 GB Flash memory, storage of up to 100,000 A-Scans

Battery Lithium Polymer, 3.6 V. 14.0 Ah

Battery Lifetime >8h (in standard mode)

Operating Temperature

0o > 30o (Charging, operating)

0o > 40o (Charging, Off)

-10o > 40o (Not Charging)

Humidity < 95% RH, non-condensing

IP Classification IP 54
