Packing list:

1pcs DSP Handle

1pcs 50 core cable

1pcs USB cable

1pcs I/O wiring board

Characteristic:

1.Totally independent from PC platform;

2.Directly read files from U Disk;

3.Easily process G code or PLT file with super size;

4.Strong system and process file examining function;

5.Easy to update system program;

6.It supports high micro step which makes precise and fast process possible;

7.Support to process part of the file;

8.Reliable data protection and recover function;

9.Friendly operating interface

Product Model

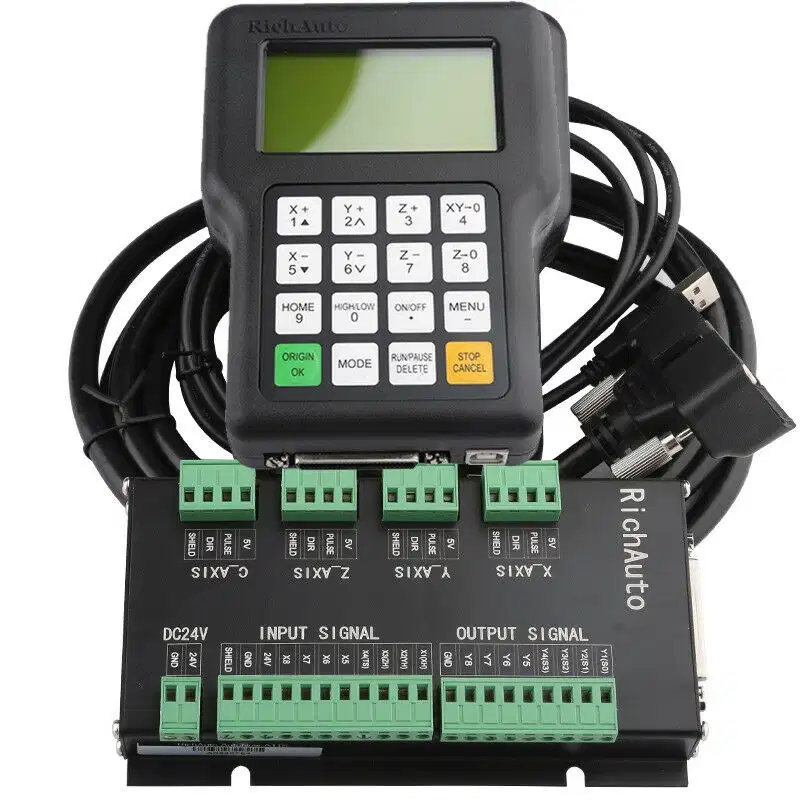

RichAuto A11

CPU

DSP

Internal Memory

512MB

Display Screen

128*64 Monochrome LCD

Communication Port

U disk, USB cable

Controlled Axis number

3 axis

Control Signal

Different signal

Drive System

Step motor / Servo motor

Mini Input Unit

0.001mm

No Volt Protection

support

Breakpoint Processing Function

8

External Power Supply Voltage

24V DC

Manual Mode

Continuous, Point move, distance

Interpolation Way

Line, arc

Soft / Hand Limit

Support

Max Pulse Frequency

1M/S

Password Protection

Support

Support language

Chinese, English
