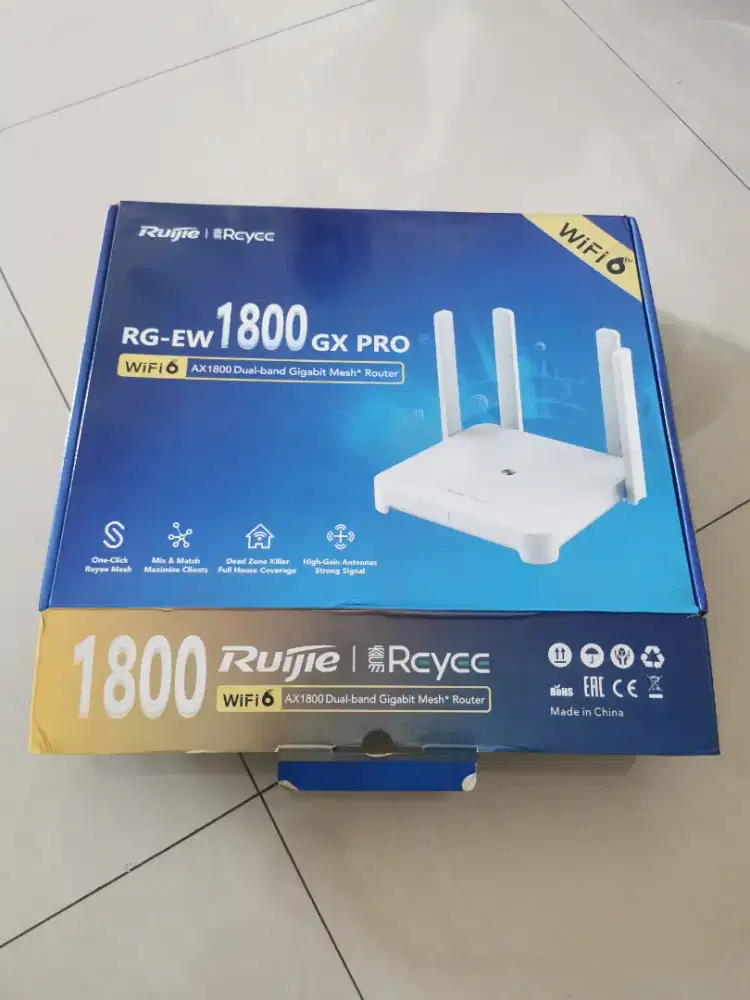

Ruijie RG-EW1800GX PRO 1800Mbps Wi-Fi 6 Dual-band Gigabit Mesh Router

1800M Wi-Fi 6 Dual-band Gigabit Mesh* Router; enterprise-grade chip solution; Gigabit broadband

access; Dual-core four-thread CPU; Support for hardware NAT; Concurrent access up to 48

(recommended) terminals Wireless access: dual-band 1800Mbps, Wired access: 5 Gigabit ports,

including 1 WAN port and 4 LAN ports; Support for 802.11ax protocol; Exclusive Reyee Mesh

technology for multi-device; Support Seamless roaming of Wi-Fi signals 2+2 independent highperformance signal amplifiers(FEM); Management via the Ruijie Cloud App on mobile phones

Wireless Parameters :

2.4 GHz, 2×2, maximum rate of 600Mbps

5 GHz, 2×2, maximum rate of 1200Mbps

4 external non-detachable omnidirectional antennes

802.11a/b/g/n/ac/ax and DL/UL MU-MIMO

Independent 2.4 GHz and 5 GHz modules and dual-band mode

Wi-Fi channel:

2.4GHz :2.4G~2.4835GHz

5GHz ：5.150~5.250GHz，5.250~5.350H，5.470~5.725GH，5.725~5.850GHz

Beamforming, OFDMA, and BSS color technologies

Ports :

One 10/100/1000M WAN port (Auto MDI/MDIX)

Four 10/100/1000M LAN ports (Auto MDI/MDIX)

One Reyee Mesh LED indicator and one system LED indicator

One Reyee Mesh button (front) and one system reset button (rear)

One power port

Power Supply

Power specifications: DC 12 V, 1.5 A

Maximum power: 18 W

Software Specifications :

PPPoE, DHCP, static IP address for network connection

Acquisition of PPPoE accounts from old routers

Dual-band mode

Priority to 5G

Wireless Transmission Power adjustment

Automatic channel adjustment

Guest Wi-Fi

Rate limiting for terminal IP addresses

Static DHCP address

Virtual server

DDNS

DMZ

UPnP

Network security :

WPA-PSK/WPA2-PSK encryption

SSID hiding

Wi-Fi squatter prevention (Blacklist)

Network access control

IP & MAC Binding

Firewall

Advanced features :

Reyee Mesh: Supported by EW Series Routers. Enables Mix & Match, Self-Healing, etc

Wireless roaming;

Hardware NAT;

One-click network optimization;

Issue diagnosis;
