READY STOCK

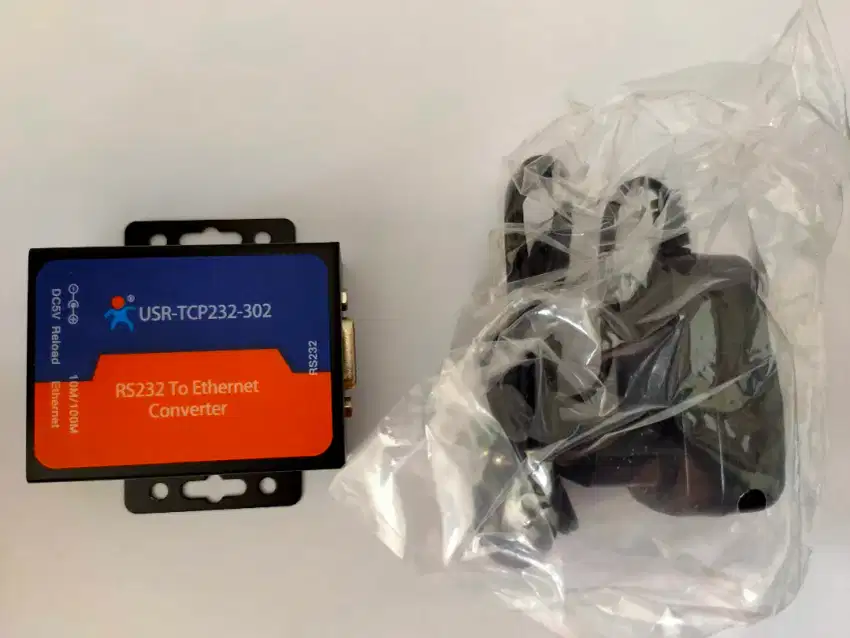

- USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet. USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication

- RS232 Ethernet Server Feature -

Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol

Support DNS function

Set parameters through webpage

Auto-MDI/MDIX, RJ45 port with 10/100Mbps

Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client

Support virtual serial port and provide corresponding software USR-VCOM

Heartbeat package mechanism to ensure connection is reliable, put an end to dead link

User-defined registration package mechanism, check connection status and use as custom packet header

Application Field of RS-232 to Ethernet Server

Industrial data transmission, industrial automation

- Isi Paket:

1 x Serial Converter TCP232-302

1 x Power supply Adaptor 220VAC/5VDC

Sebelum cod barang akan kami tes/cek fungsi terlebih dahulu.

Nb:Tidak melayani chat di olx, silahkan chat di wa

Terimakasih
