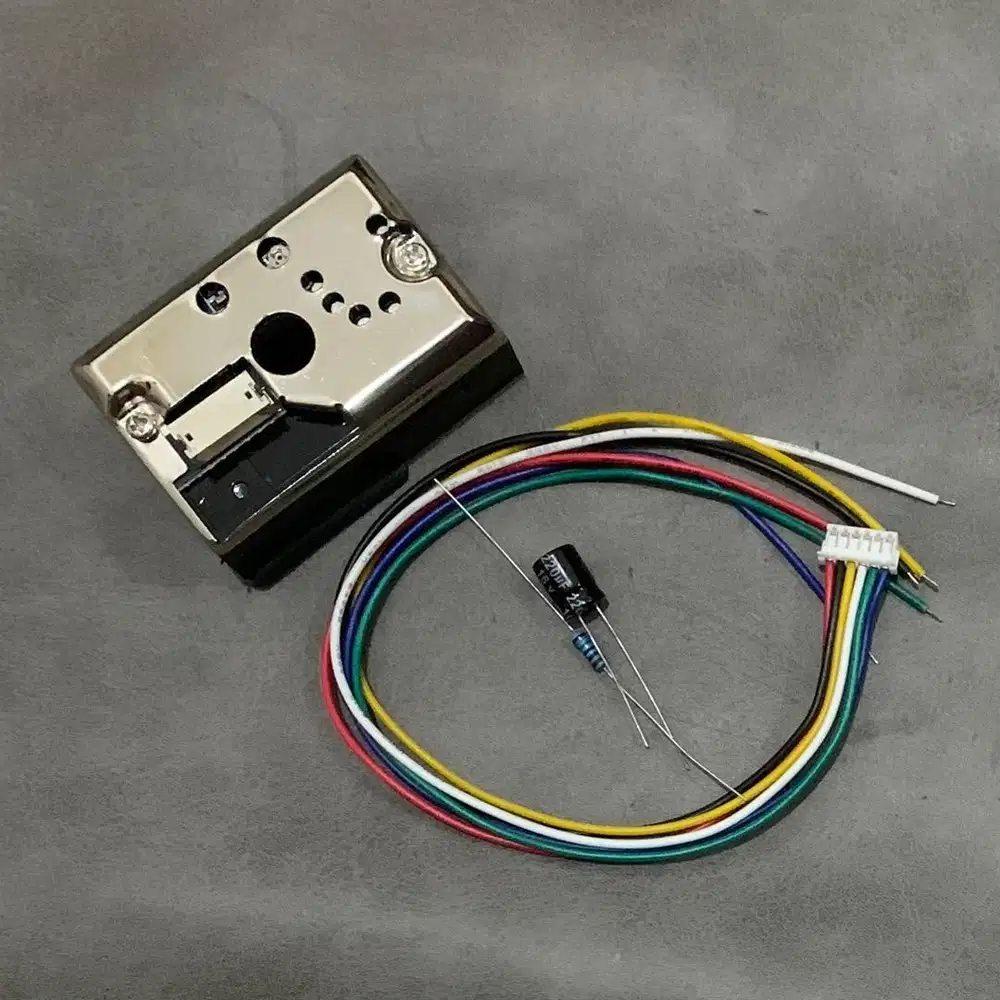

Japan's Sharp dust sensor dust sensor GP2Y1010AUOF PM2.5 air quality detection

A dust sensor GP2Y1010AU Description:

measure tiny particles 0.8 microns or more, perceive the tobacco produce smoke and pollen, house dust and other small size, light weight, ease of installation.

Dust sensor GP2Y1010AU main parameters:

1) dust sensor GP2Y1010AU

1. Sensitivity: 0.5V / (0.1 mg / M3)

2. Output voltage (no dust): 0.9V (TYP)

3. Current consumption: 11mA

The dust sensor GP2Y1010AU Typical applications:

• refresher, ventilation and air conditioning, ventilation fans and other products

GP2Y1010AUOF is an optical air mass sensor, designed for sensing airborne dust particles, which are placed inside the diagonal infrared light emitting diode and a photo transistor, making it possible to detect the reflected light dust in the air, even if very small, such as tobacco smoke particles can be detected, usually used in air purification systems.

The sensor has a very low current consumption (maximum 20mA, typ 11mA), can be used up to 7VDC. The sensor output is an analog voltage proportional to its value and dust concentration.

Smiling measure 0.8 micron particles, the perception of tobacco produced die and pollen, house dust, etc., small size, light weight, easy to install, widely used in air cleaners, ventilation and air conditioning, ventilation fans and other products.
