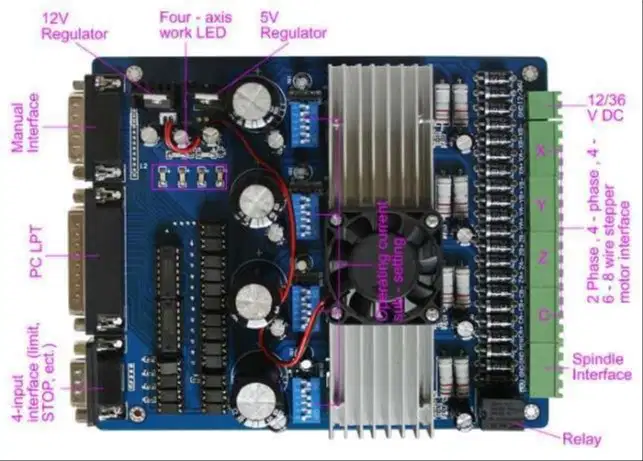

Deskripsi TB6560 4 axis controller & driver board TB6560

B6560 4 axis controller & driver board TB6560

Product Features:

Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset

1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!

Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors

Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment

On board current switching - Power output can be set according to specific user requirement

Full closed-type optical isolation to protect the user's computer and equipment

Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)

4 channel inputs interface- Can be used for XYZ limit and emergency stop

Professional design - Two stage signal processing with super anti-jamming

Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect

Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop

Universal architecture - Supports most parallel software MACH3, KCAM4, EMC2 etc!

Package inclusive:

Controller Board, 25-pin parallel cable F/M

CD manual and mach3
