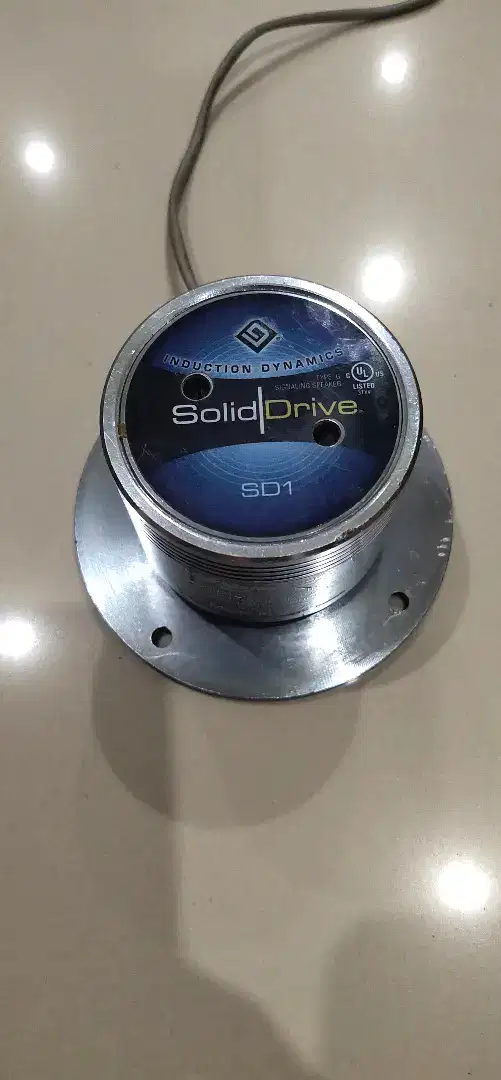

SolidDrive SD-1 Surface Mount Actuator in Titanium

The SD1 attaches to drywall and similar surfaces using our patented cantilever spring mounting bracket. Each SD1 is designed for one channel of audio. An optional equalization module optimizes the SD1 for use on drywall. The SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate with very high-powered neodymium magnets and dual symmetrically opposed motors to convert audio signals into powerful vibrations. Those vibrations are transferred into solid surfaces through direct contact. High-quality, full-range sound is then radiated from the entire surface with a frequency response of 60 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.

DRYWALL

SD-1

Machine screws inserted into holes countersunk from bottom, to attach transducer to drywall sprin-bracket (sold separately).

Glass

SD-1G

Installation via VHB Adhesive Disc (Not included) on smaller foot/base.

Wood

SD-1SM (Not Include)

Wood screws inserted into holes countersunk from top, to attach transducer directly to mounting surface.

Specifications :

Color: Titanium

Manufacturer: Solid Drive

Manufacturers Category: The Original Solid Drive

Year Manufacturer: 2010

Height: 2.06 inch / 52,32mm

Width Diameter: 2,3 inch / 58,42mm

Certifications: CE, RoHS, UL1480 A, UL2043

Optional Accessories: Titanium Heat Sink (SD1-HS-TI)|12" On-Center Bracket Assembly (SD1-BR12) |16" On-Center Rear-Install Drywall Bracket assembly for SolidDrive (SD1-BR16-R)|16" On-Center Bracket Assembly (SD1-BR16)|24" On-Center Bracket Assembly (SD1-BR24)|Passive Equalization Module - Drywall (PEM-DW)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR

Source Inputs: Wire Leads

TAA Compliant (Trade America): Yes

BAA Compliant (Made In USA): Yes

Frequency Response (+-10db): 60Hz - 15 kHz Nominal w/o EQ

Max Continous Power RMS: 30w

Max Program Power: 100w

Min Impedance: 8 Ohms

Nom Impedance: 8 Ohms

Sensitivity dB @ 1W/1M: 73,5 dB

Sensitivity dB @ 2,83V/1M: 70-75dB

Condition: Preloved 98% , No Box Packing , No Manual Book dan Warranty

Note :

Silahkan Ditawar Sewajarnya , Autoblock Jika Nego Harga Jauh.

Harga yg ditawarkan sdh Sangat2 Murah , Harga Jual Di Olshop Luar Negeri Est Rp.10-11 jt (Lihat Foto Slide Terakhir).

Jika Anda Ragu Sebaiknya Tidak Usah Nego Harga apalagi Beli , Seller Tdk Menerima/Melayani Komplain/Retur/Refound.

Be A Smart Buyer ya Kak.

Note :

Barter dng Jam Automatic Merk Seiko / Mido / Tissot / Longiness Boleh asalkan Jam nya Authentic dan Tdk Rusak , Coba Di info sj Merk dan Mdl Jam nya.
