Technical Specifications

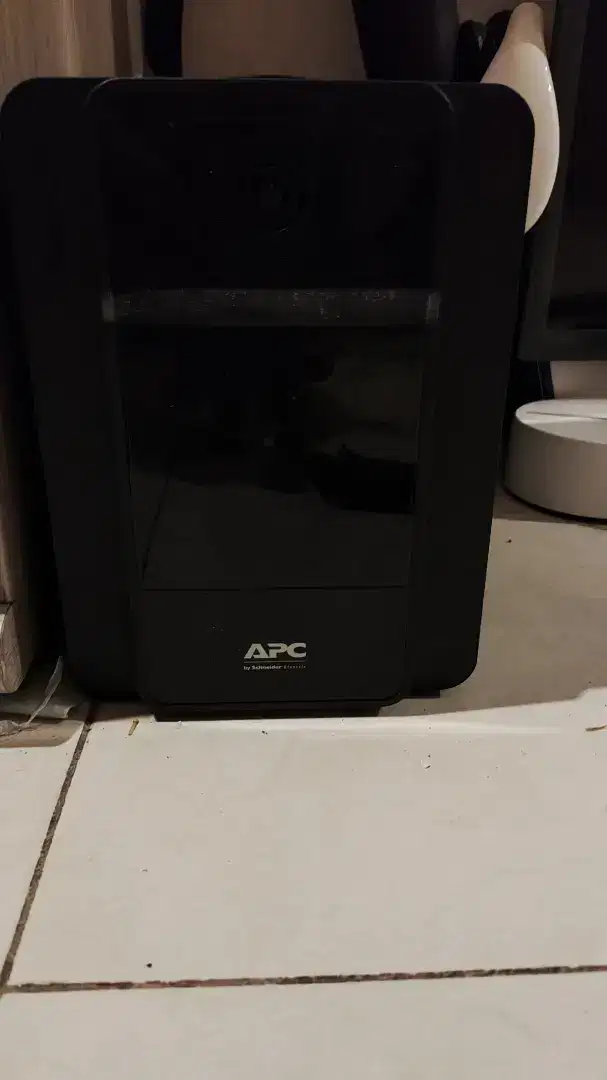

APC BVX1200LI-MS 1200VA 230V 650W BVX 1200 VA AVR BVX1200LIMS Easy UPS

*Colokan output universal bisa untuk semua colokan kaki 2 dan kaki 3 langsung colok tanpa perlu converter/adapter kaki 3 lagi.

Output

Max Configurable Power (Watts) 650 Watts / 1.2kVA

Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains

Topology Line interactive

Waveform type Stepped approximation to a sinewave

Transfer Time 6 ms typical : 10 ms maximum

Input

Input frequency 50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations 140 - 300 (230 V) ACV

Number of Power Cords 1

Input Power Factor at Full Load 0.51

Batteries & Runtime

Battery type Lead-acid battery

Typical recharge time 8hour(s)

Nominal Battery Voltage 12 V

Expected Battery Life (years) 2 - 3

Battery Volt-Amp-Hour Capacity 108

Runtime View Runtime Graph

Efficiency View Efficiency Graph

Communications & Management

Control panel LED Status display with on line : on battery

Audible Alarm Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

Surge energy rating 273Joules

Physical

Maximum Height 190MM, 19.0CM

Maximum Width 140MM, 14.0CM

Maximum Depth 390MM, 39.0CM

Net Weight 7.5KG

Shipping weight 8.5KG

Shipping Height 297MM, 29.7CM

Shipping Width 235MM, 23.5CM

Shipping Depth 495MM, 49.5CM

Color Black
