Detail
Deskripsi
Spesifikasi
Daya Keluar 2000VA / 1400W
Baterai
Battery Type : 12V/10AH - 2pc
Battery Backup Time : Up to 40 mins depending on load
Battery Recharge Time : 2-4 hours recover to 90% capacity
Alarm : Audible & visual
UPS Protection : UPS Protection Load Auto Sensing and Abnormal Protection
Overload Protection : Line mode : 110 - 120% 5 mins & shutdown; >120% shutdown immediately | Battery mode : 100 - 110% alarm & shutdown in 10 secs; >120% shutdown immediately
Intelligent Battery : Prevent overcharging of battery
Management : Protect battery and prolong battery life
Noise Level : <40dB
Temperature : 0˚C - 40˚C
Humidity : 0 - 90%
Power Factor : Up to 0.7
Built-in AVR : TRUE Full AVR (3 Steps)
Voltase Masuk
Input Voltage Range : 140~300VAC ±5%
Input Frequency : 50Hz/60Hz (Auto-sensing)
Input Phase : Single + GND
Berat Produk 10.6kg
Antarmuka / Interface
RJ45 Ports
USB Connector
Dimensi Produk 320 x 130 x 182mm
Voltase Keluar
Output Voltage Range : 230VAC +12% -14%
Output Battery Mode : 230VAC +10% -10%
Output Frequency : 50Hz/60Hz ±1% (Battery mode)
Output Waveform : Simulated sine wave (Battery mode) | Sine wave (AC mode)
Output Transfer Time : 2ms typical
Lain-lain
Short Circuit Protection : Yes (Line mode & battery mode)
Surge Protection : Yes

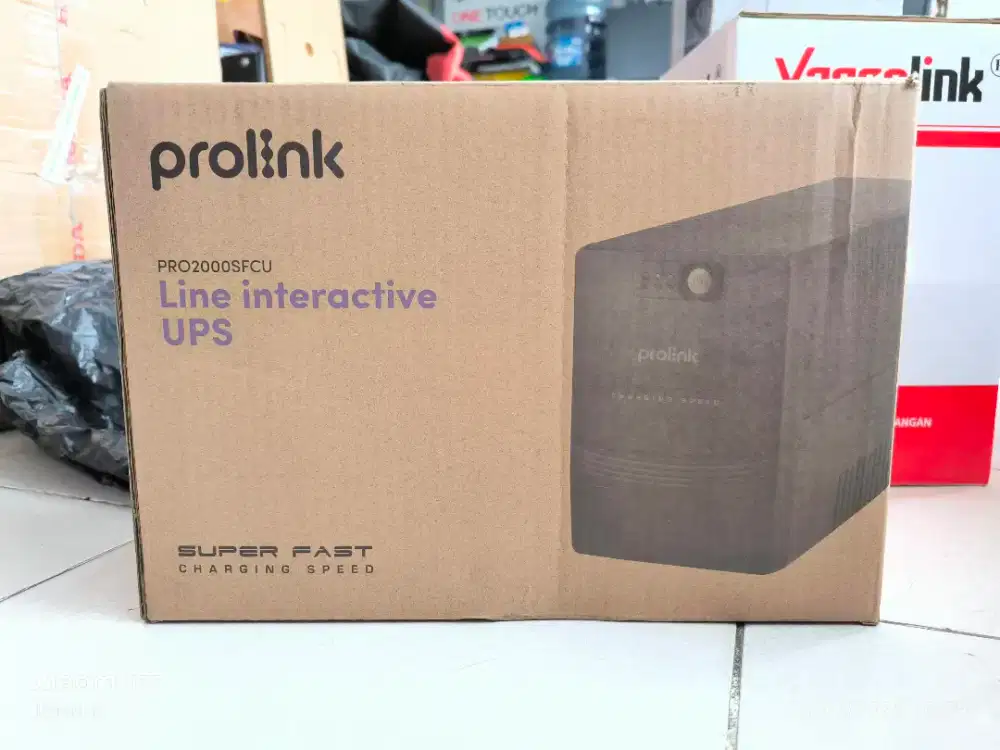

UPS PROLINK 2000VA
