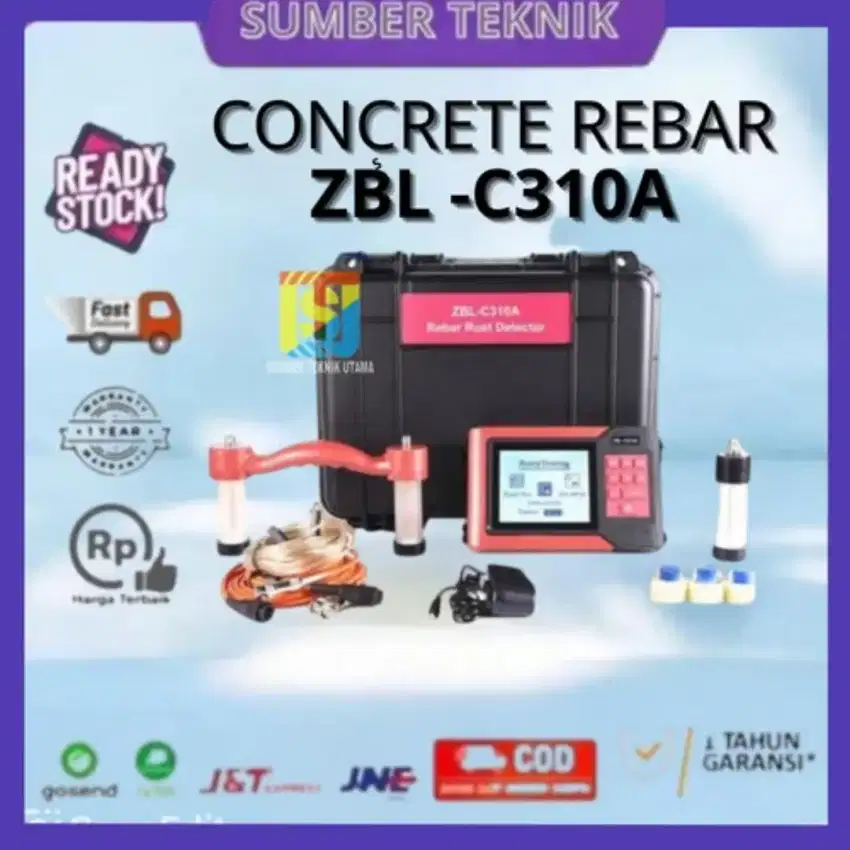

The C310A provides the ability to examine the corrosion potential and to locate active corrosion in rebar in building structures. The procedure is virtually non-destructive and is performed by carrying out a grid based measurement.

The C310A Rebar Corrosion Detector is a specialized apparatus designed according to the electrochemical testing method (natural potential method). C310A tests the potential of concrete surfaces by a Cu/CuSO4 reference electrode, and determines the level of rebar corrosion.

Features:

Based on natural potential method and potential gradient method (two methods), ZBL-C310A can detect corrosion range and corrosion distribution of rebar in building structures, and foresee and prevent great accidents.

l Automatic storage option is available in instrument.

l Data transfer to USB-thumb drive is available.

l It can generate rebar corrosion potential contour graph.

l Software provided for data processing of corrosion potential data is very user-friendly.

l Generate final analysis report

l Operates on windows based computers

Technical Specifications:

Corrosion detection method

Single electrode ±1000mV

Double electrode 0~1000 mV

Accuracy ±0.1mV

Tested points Interval X

Single electrode 0~100 adjustable

double electrode 20 fixed,

Tested points interval Y 0~100 adjustable

Power Built-in rechargeable lithium battery

Battery operating Time >40 hours

Data transmission U thumb drive storage

Size 212mm´134mm´50mm
