Parameters:

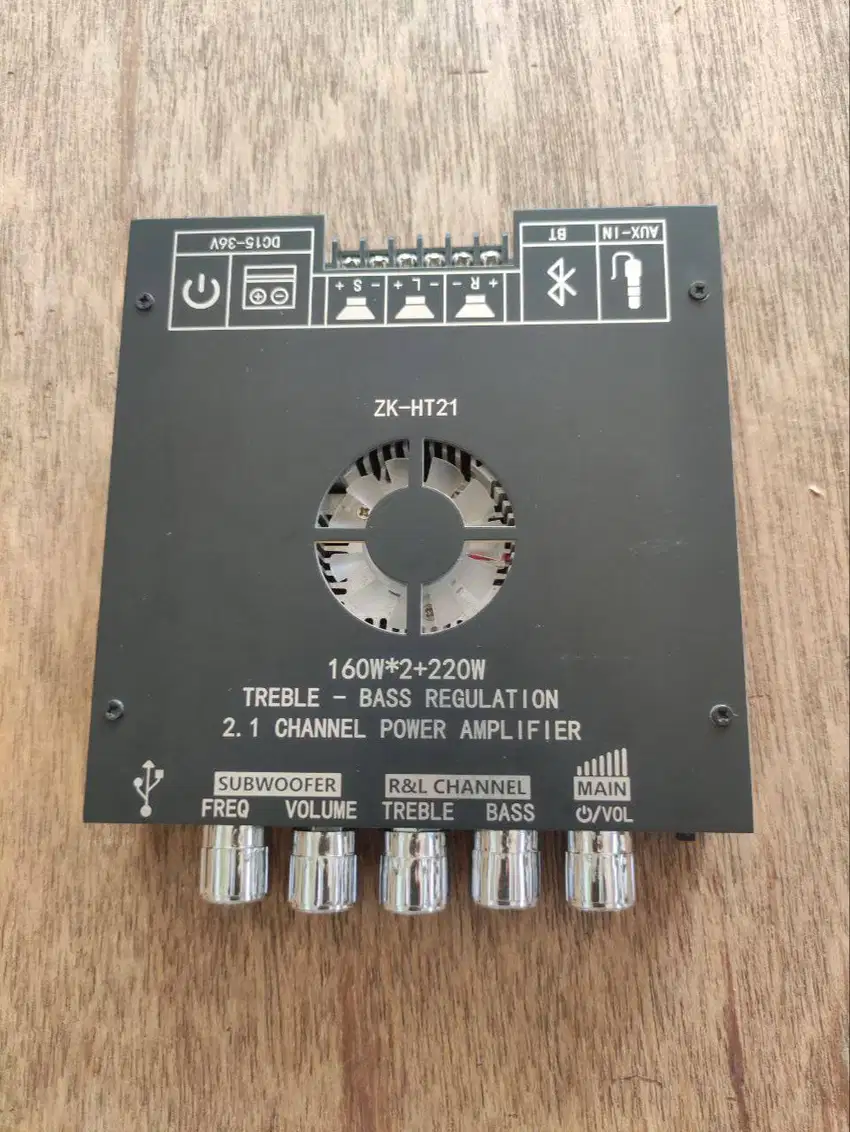

Product Name: 2.1 channel audio amplifier module with Tone

Product Model: ZK-HT21

BT Version: 5.0 (no shielding, 15 meters)

Audio Input: AUX + BT + USB (Dial wheel button toggles song and mode)

Channel: 2.1 (Left channel + right channel + subwoofer)

Chip Solution: TDA7498E

Adaptive power supply: DC 15~36 V (Under voltage protection below 9V, and 12V power supply can also be supported)

Adapter Speaker: 30-200W, 4-8Ω

Output Power: Max 160W @ R&L channel

Max 220W @ subwoofer

Protection Mechanism: Anti reverse connection, undervoltage, overheating, overcurrent, short circuit protection

Product Size: 145*126*28mm

Product weight: net weight 327g, package weight 395g

Tip: when the audio signal input is large enough and the power supply voltage / current is large enough, there will be enough output power!

The higher the power supply voltage, the greater the output power, the smaller the horn impedance, and the greater the output power!

Please ensure that the power of the adaptive power supply is greater than the actual working power of the power amplifier!
